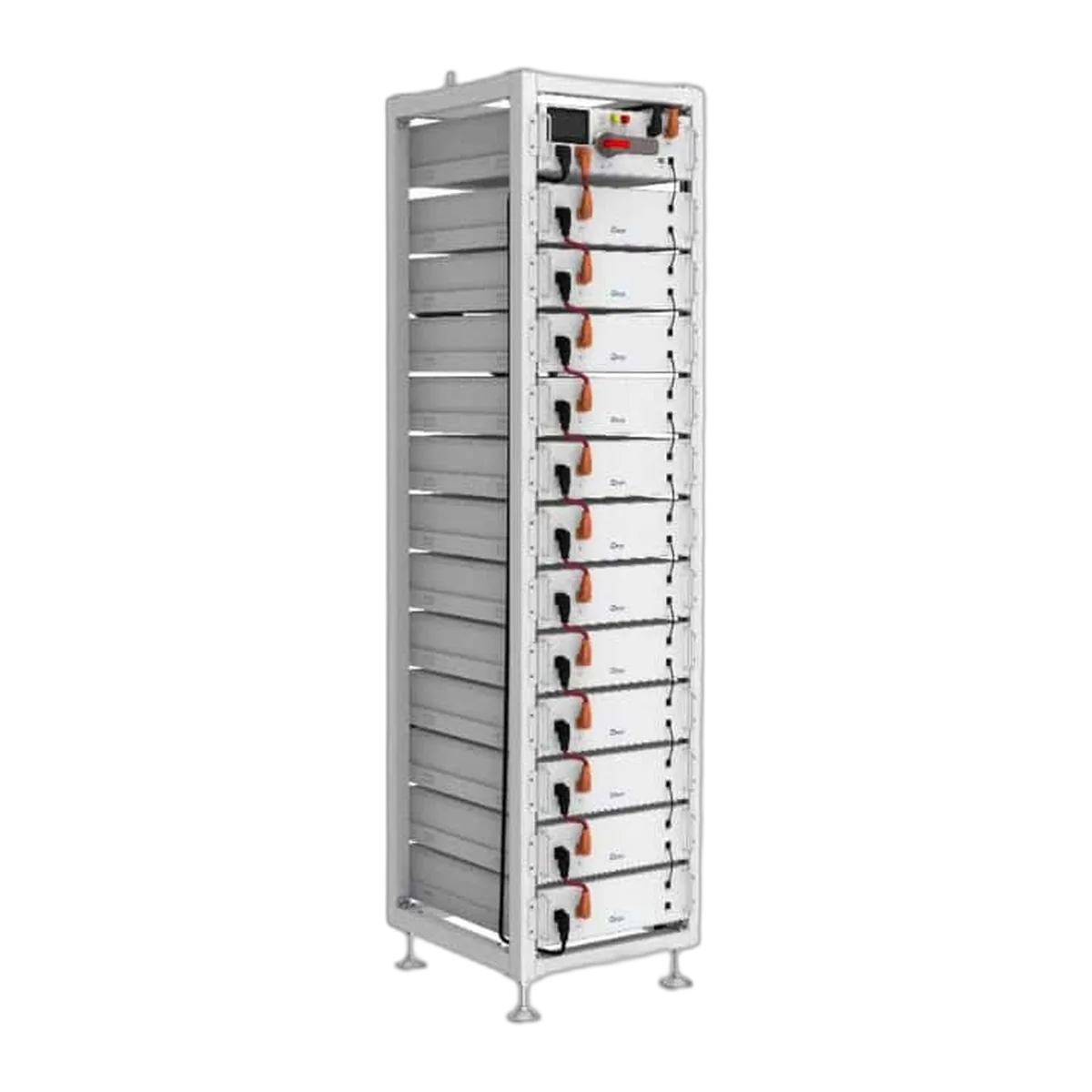

Deye BOS-G60 high-voltage battery set with a nominal capacity of 61.44 kWh and a voltage of 614.4 V, consisting of 12 LiFePO4 modules. Lifespan of over 6000 cycles, 10-year warranty.
The Deye Battery set HV 614.4V 61.44Kwh is a high-voltage energy storage set based on the BOS-G60 configuration, consisting of 12 LiFePO4 battery modules connected in series. It provides a nominal capacity of 61.44 kWh at a nominal system voltage of 614.4 V, while the intelligent BMS ensures safety and a long system lifespan.
| Cell technology | LiFePO4 |
| Nominal capacity | 61.44 kWh |
| Usable capacity | 55.29 kWh |
| Nominal system voltage | 614.4 V |
| Operating voltage range | 499.2–700 V |
| Number of modules (in series) | 12 |
| Module capacity | 5.12 kWh / 100 Ah |
| Module voltage | 51.2 V |
| DC nominal power | 61.44 kW |
| Charge/discharge current (nom.) | 100 A |
| Peak discharge current | 125 A |
| Communication | CAN2.0/RS485 |
| Protection class | IP20 |
| Operating temperature | charge 0–55°C / discharge -20–55°C |
| Cycle life | ≥6000 |
| Dimensions (W×D×H) | 530×602×2187 mm |
| Weight | ~594 kg |
| Warranty | 10 years |
Deye Battery set HV 614,4V 61,44Kwh — high-voltage battery set BOS-G60 — B2B wholesale prices for installers and contractors. Check availability and terms of cooperation: contact us.
