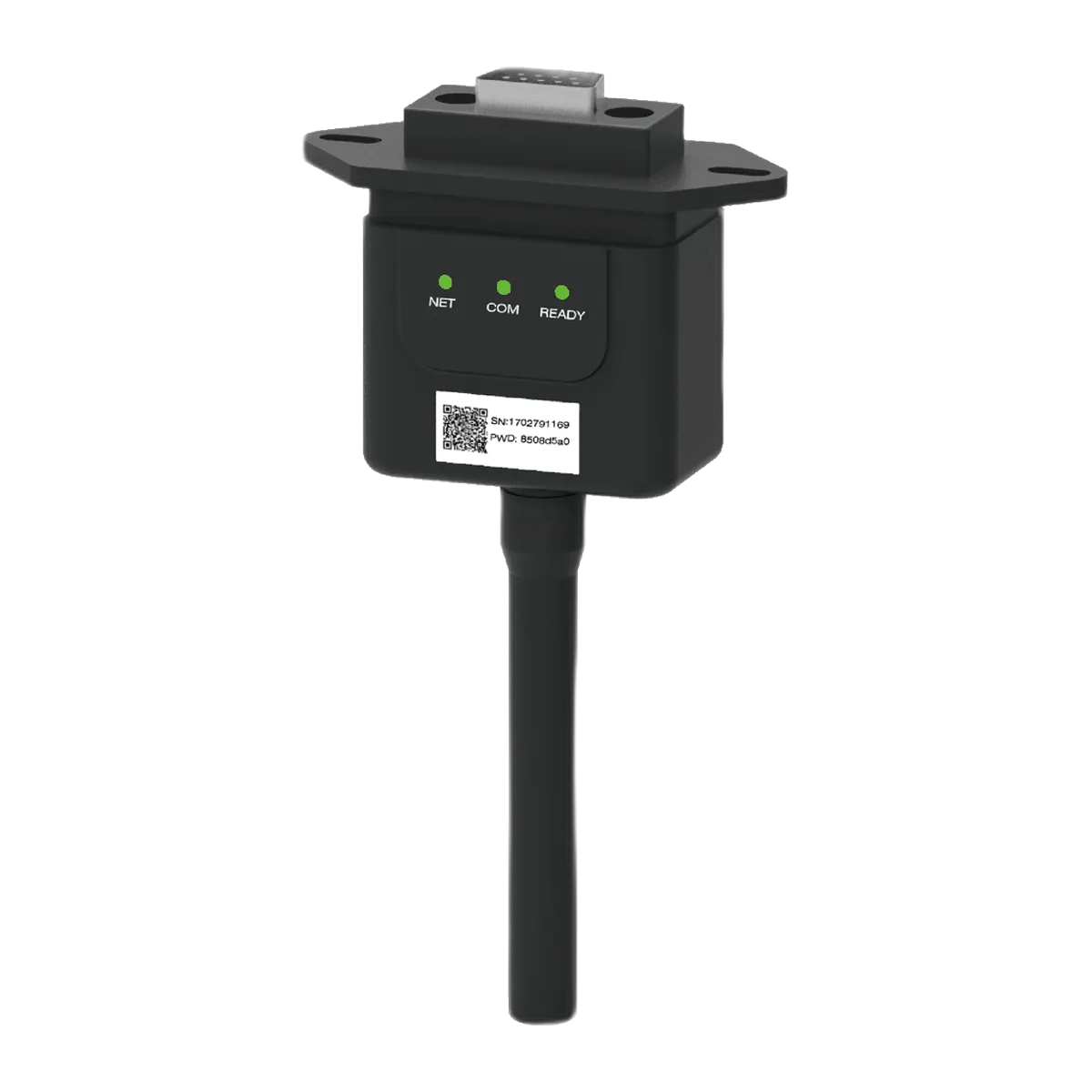

Deye LSW - Deye LSW-5 stick data logger with a WiFi module for remote monitoring of photovoltaic installations. RS-485 communication, DC 5-12 V power supply, IP65 protection rating, plug and play technology.
Deye LSW - Deye LSW-5 is a compact data logger (stick logger) with a built-in WiFi module that collects operational data and inverter power generation information, transmitting it to a cloud monitoring platform. Thanks to plug and play technology, installation is fast, and 24/7 monitoring ensures full control over the PV system.
| Type | Stick logger (WiFi) |
| Data interface | RS-485 |
| External connection | DB9 |
| Operating voltage | DC 5–12 V |
| Power consumption | 1.5 W |
| WiFi operating band | 2.412–2.472 GHz |
| Operating mode | AP+STA |
| Data memory | 8 MB Flash (default) |
| Data transmission interval | 5 min (1–15 min, optional) |
| Serial communication speed | 9600 bps (1200–115200 bps, optional) |
| Protection rating | IP65 |
| Operating temperature range | -30°C to +70°C |
| Operating humidity | 10–90%, non-condensing |
Deye LSW - Deye LSW-5 — WiFi data logger (stick logger) for inverters — B2B wholesale prices for installers and execution companies. Check availability and cooperation terms: contact us.
