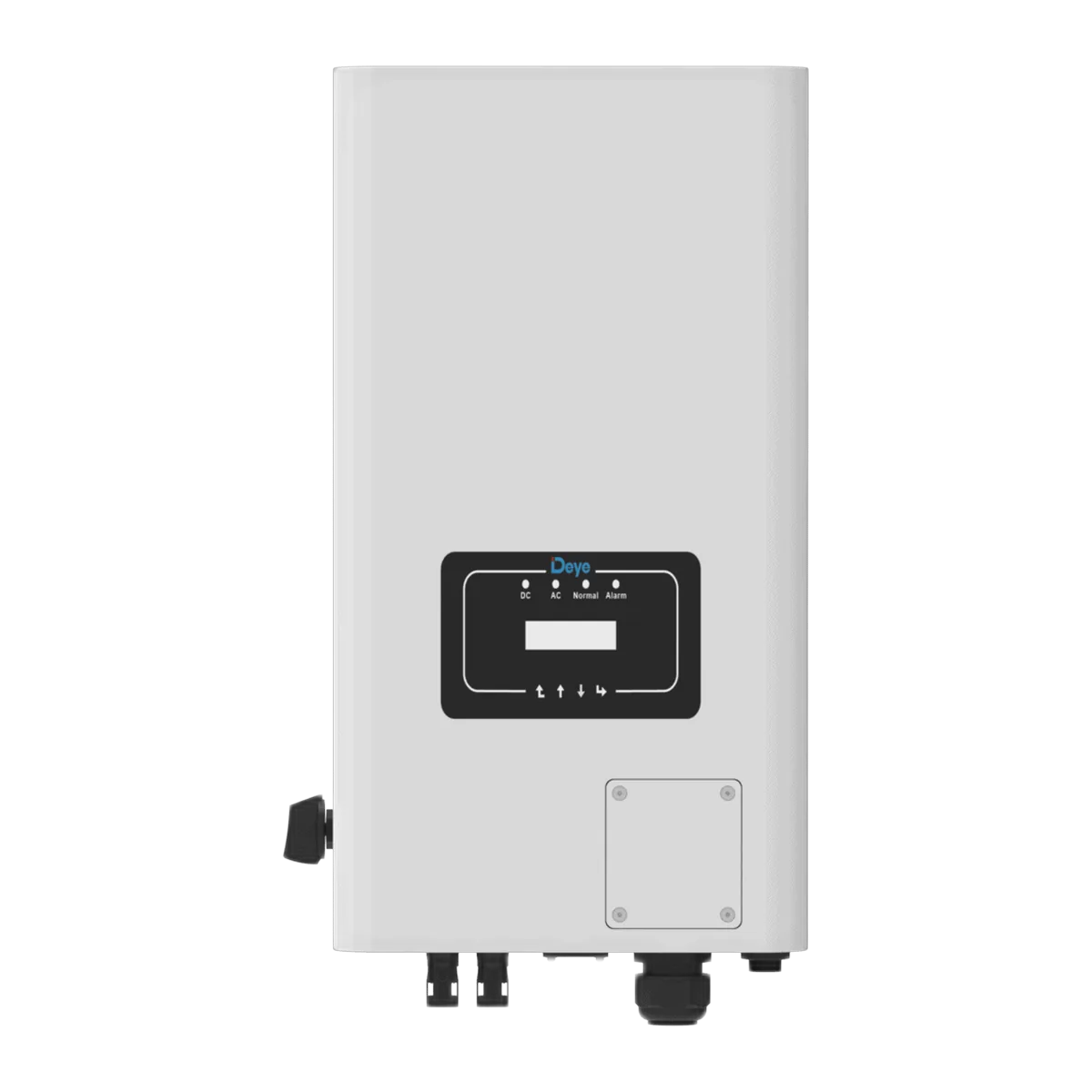

Deye SUN-15K-G05 three-phase grid-tied inverter with a rated power of 15 kW, two MPPT trackers, and a maximum efficiency of up to 98.5%. Transformerless design in an IP65 enclosure.
Deye SUN-15K-G05 is a three-phase grid-tied photovoltaic inverter. Thanks to two MPPT trackers and a wide input voltage range, it allows flexible installation design, while the maximum efficiency of up to 98.5% ensures high energy yields. The transformerless design in an IP65 enclosure with passive cooling performs well in demanding conditions.
| Rated output power | 15 kW |
| Max. active power | 16.5 kW |
| Max. PV input power | 22.5 kW |
| Number of MPPTs / strings | 2 / 1+2 |
| Max. PV input voltage | 1100 V |
| MPPT operating voltage range | 120–1000 V |
| Rated AC output current | 22.8 / 21.8 A |
| Max. AC output current | 25 / 24 A |
| Grid connection type | 3L/N/PE |
| Output voltage | 220/380 V, 230/400 V |
| Max. efficiency | 98.5% |
| Euro efficiency | 98% |
| Protection rating | IP65 |
| Architecture | Transformerless |
| Cooling type | Passive |
| Operating temperature range | -25 to +60°C |
| Dimensions (W×H×D) | 283×463×178 mm |
| Weight | 11 kg |
| Warranty | 12 years |
Deye SUN-15K-G05 — 15 kW three-phase grid-tied inverter — B2B wholesale prices for installers and contractors. Check availability and terms of cooperation: contact us.
