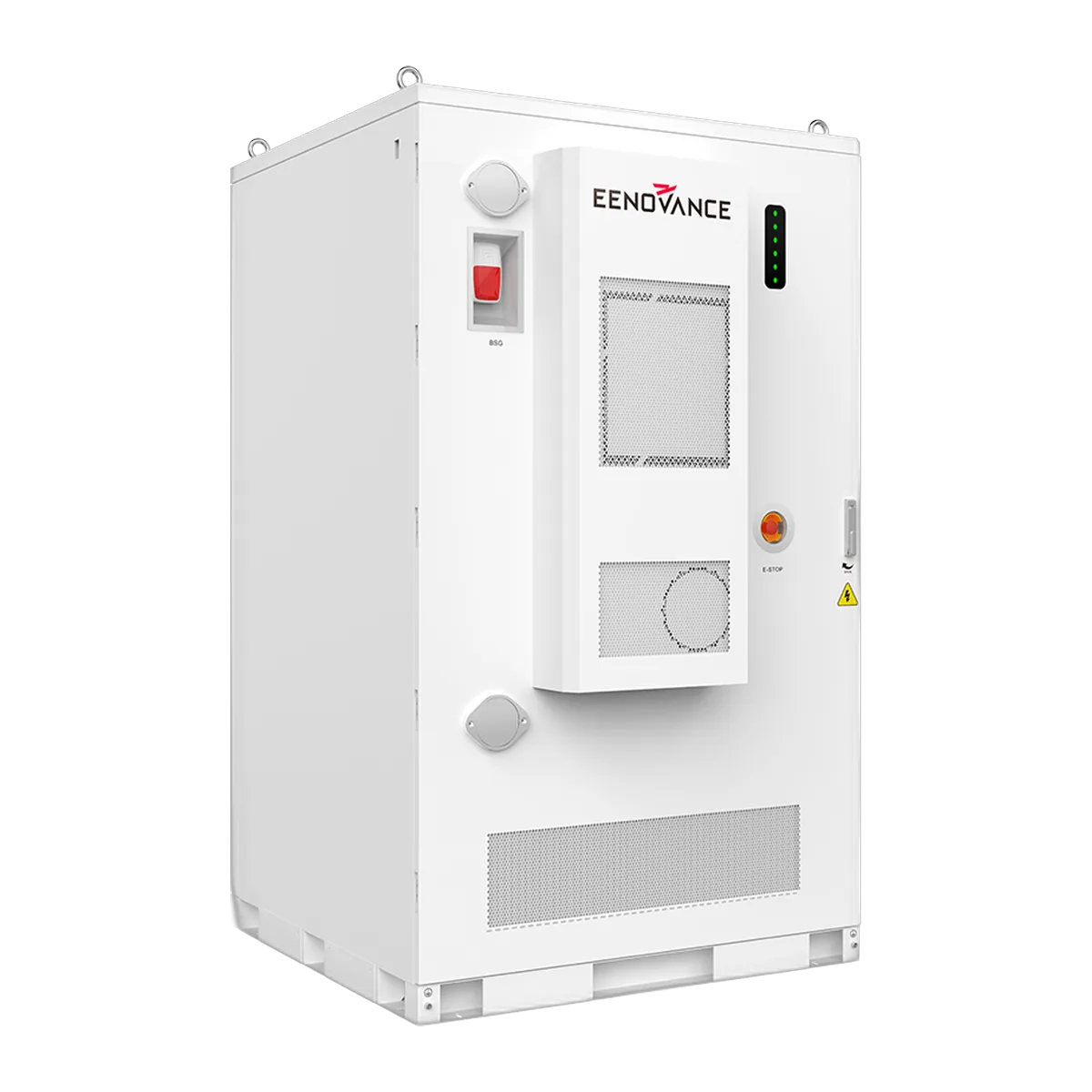

Commercial energy storage Eenovance E-MATE 105-221-A with a capacity of 221 kWh and a power of 105 kW, featuring built-in PCS and air cooling. System for on-grid installations and AC coupling with PV, IP55 protection class.
Eenovance E-MATE 105-221-A is an integrated energy storage for the commercial and industrial (C&I) sector, combining batteries and a PCS converter in one device. The system with a capacity of 221.056 kWh and an output power of 105 kW is designed for on-grid operation and AC coupling with a PV installation. The modular battery with air cooling is based on LFP cells, and up to 10 units can be connected in parallel on the AC side.
| Cell technology | LFP 3.2 V / 314 Ah |
| Battery module | 20.096 kWh, 64 V |
| Number of modules | 11 |
| Nominal capacity | 221.056 kWh |
| Nominal voltage | 704 V |
| Nominal current | 157 A |
| Voltage range | 616 V ~ 792 V |
| AC output power | 105 kW |
| Grid voltage | 400 V |
| Output current | 167 A |
| Grid frequency | 50 Hz / 60 Hz |
| Max. efficiency | 98.5% |
| Overload capacity | 110% (long-term), 120% (1 min) |
| Dimensions (W×D×H) | 1380×1540×2330 mm |
| Weight | 2750 kg |
| Protection class | IP55 |
| Cooling method | Forced air cooling |
| Communication | CAN / RS485 / TCP |
| Cycle life | 8000 cycles |
Eenovance E-MATE 105-221-A — commercial energy storage 105 kW / 221 kWh with air cooling — B2B wholesale prices for installers and contractors. Check availability and terms of cooperation: contact us.
