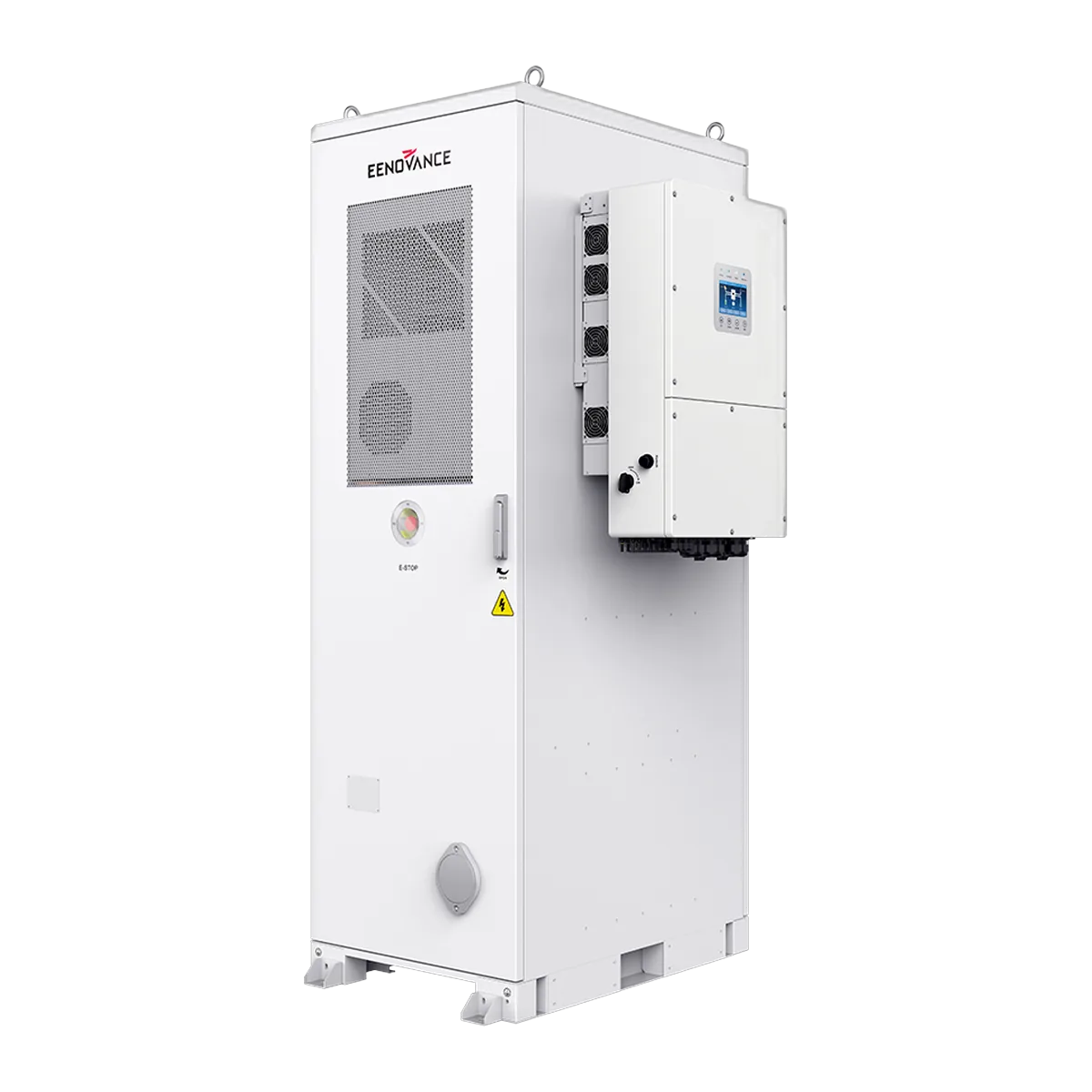

Eenovance E-MATE 61-A hybrid energy storage with 61 kWh capacity and 50 kW power, featuring 4 MPPT trackers and air cooling. The all-in-one system integrates PV, battery, AC grid, and generator, operating on-grid and off-grid with an IP55 protection rating.
The Eenovance E-MATE 61-A is a hybrid energy storage system for the commercial and industrial (C&I) sector, integrating photovoltaics, battery, AC grid, and a diesel generator in one system. The unit, with a capacity of 61.44 kWh and an output power of 50 kW, operates both on-grid and off-grid, offering UPS backup power with a 10 ms switchover time. The air-cooled battery is based on LFP cells.
| Cell technology | LFP 3.2 V / 100 Ah |
| Battery module | 5.12 kWh, 51.2 V |
| Number of modules | 12 |
| Nominal capacity | 61.44 kWh |
| Nominal voltage | 614.4 V |
| Nominal current | 80 A |
| Voltage range | 480 V ~ 700.8 V |
| AC output power | 50 kW |
| Output current | 76 A |
| Grid frequency | 50 Hz / 60 Hz |
| On/off grid switchover time | < 20 ms |
| Max. efficiency | 97.80% |
| PV voltage range | 150 V - 850 V (full power above 500 V) |
| Max. DC power (PV) | 75 kW |
| Number of MPPTs | 4 |
| Dimensions (W×D×H) | 740×1040×2330 mm |
| Weight | 1220 kg |
| Protection rating | IP55 |
| Cooling method | Forced air cooling |
| Communication | CAN / RS485 / TCP |
| Lifespan | 6000 cycles |
Eenovance E-MATE 61-A — hybrid energy storage 61 kWh with air cooling — B2B wholesale prices for installers and contractors. Check availability and terms of cooperation: contact us.
