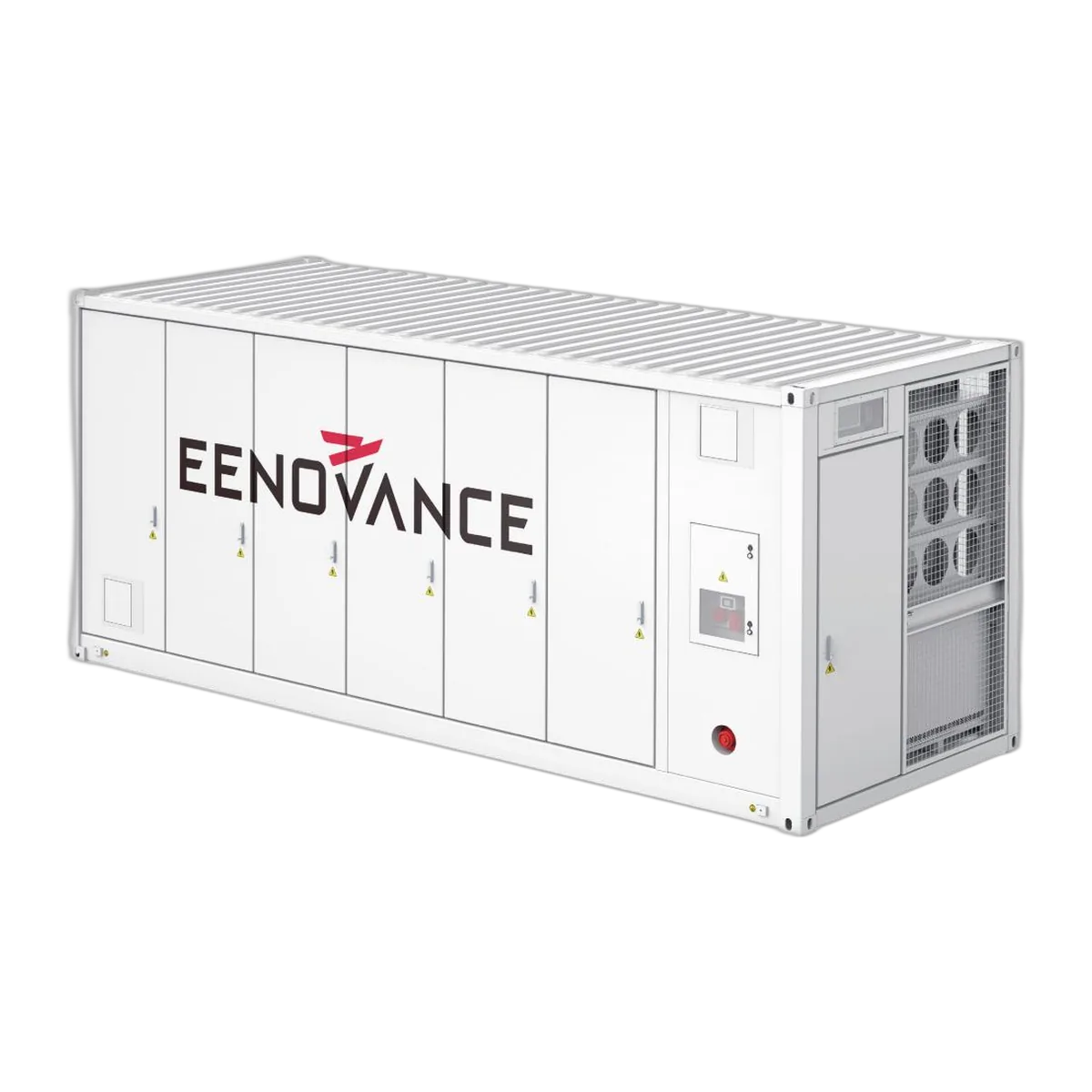

Eenovance G-Power 5016-L PCS containerized energy storage with a capacity of 5.016 MWh, based on LFP cells with liquid cooling. Modular design, IP55 protection class, and outdoor installation with an intelligent EMS system.
Eenovance G-Power 5016-L PCS is a large-scale, containerized battery energy storage system (BESS) with a capacity of 5.016 MWh, designed for outdoor installation. It is based on lithium iron phosphate cells (LFP 3.2 V / 314 Ah) and uses liquid cooling, which ensures stable operation and a long lifespan of up to 8000 cycles. The modular design enables flexible cluster selection and system expansion.
| Cell technology | LFP 3.2 V / 314 Ah |
| Battery module configuration | 1P104S |
| Cluster configuration | 1P416S |
| System configuration | 12×1P416S |
| Rated capacity | 5.016 MWh |
| Rated voltage | 1331.2 V |
| Voltage range | 1040 V ~ 1497.6 V |
| Charge/discharge rate | 0.5P |
| Dimensions (W×D×H) | 6058×2438×2896 mm |
| Weight | 40T-45T |
| Operating temperature range | -30°C ~ +55°C |
| Relative humidity | 5 ~ 95% (non-condensing) |
| Max. operating altitude | 3000 m |
| Noise level | ≤75 dB |
| Protection class | IP55 |
| Cooling method | Liquid cooling |
| Communication | CAN / RS485 / TCP |
| Lifespan | 8000 cycles |
Eenovance G-Power 5016-L PCS — containerized energy storage 5.016 MWh with liquid cooling — B2B wholesale prices for installers and contractors. Check availability and terms of cooperation: contact us.
