High-voltage FoxESS junction box (HV-Junction Box-50) enabling parallel connection of up to 4 EK/EP series batteries. IP65 enclosure for indoor and outdoor installation, scalable up to 46.08 kWh.

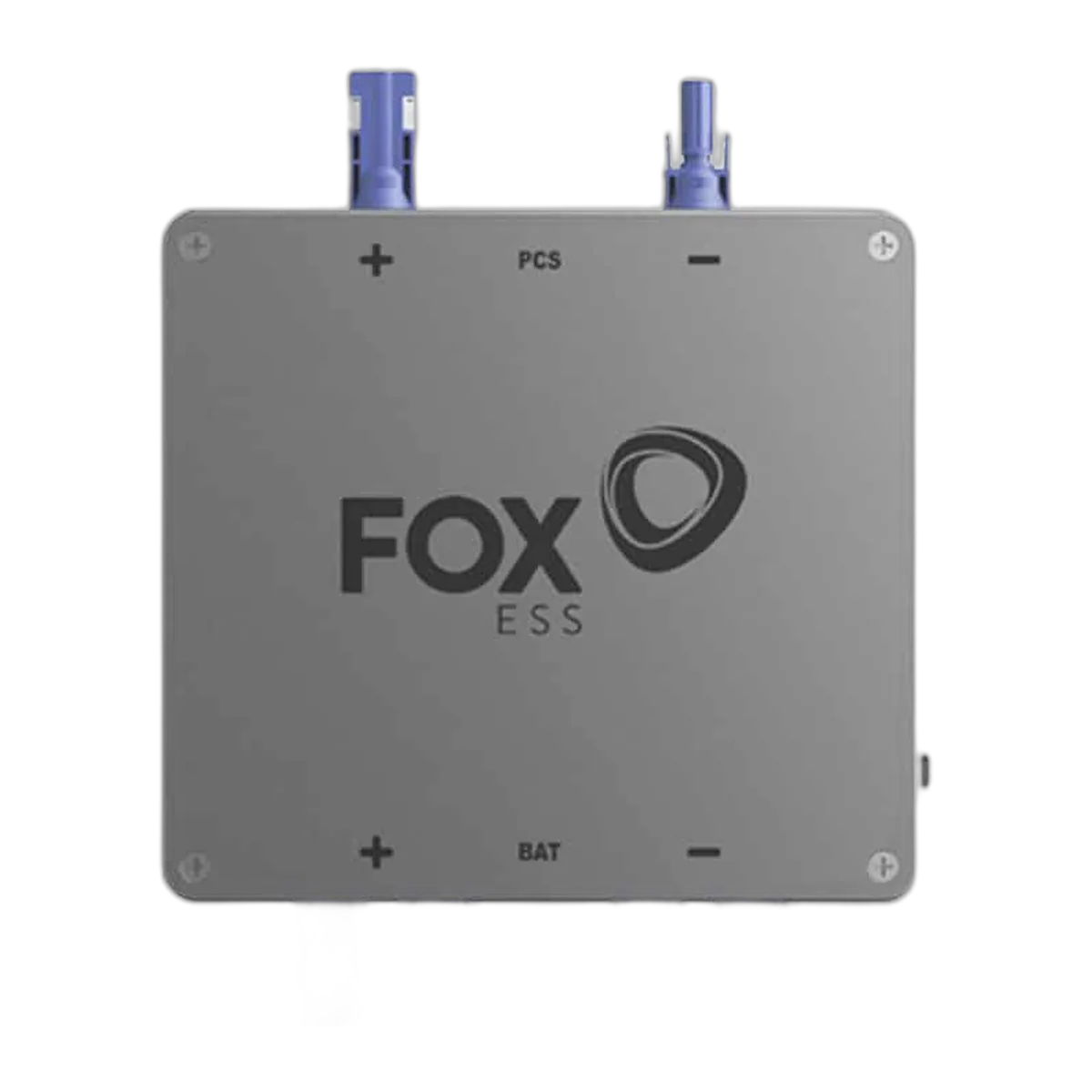

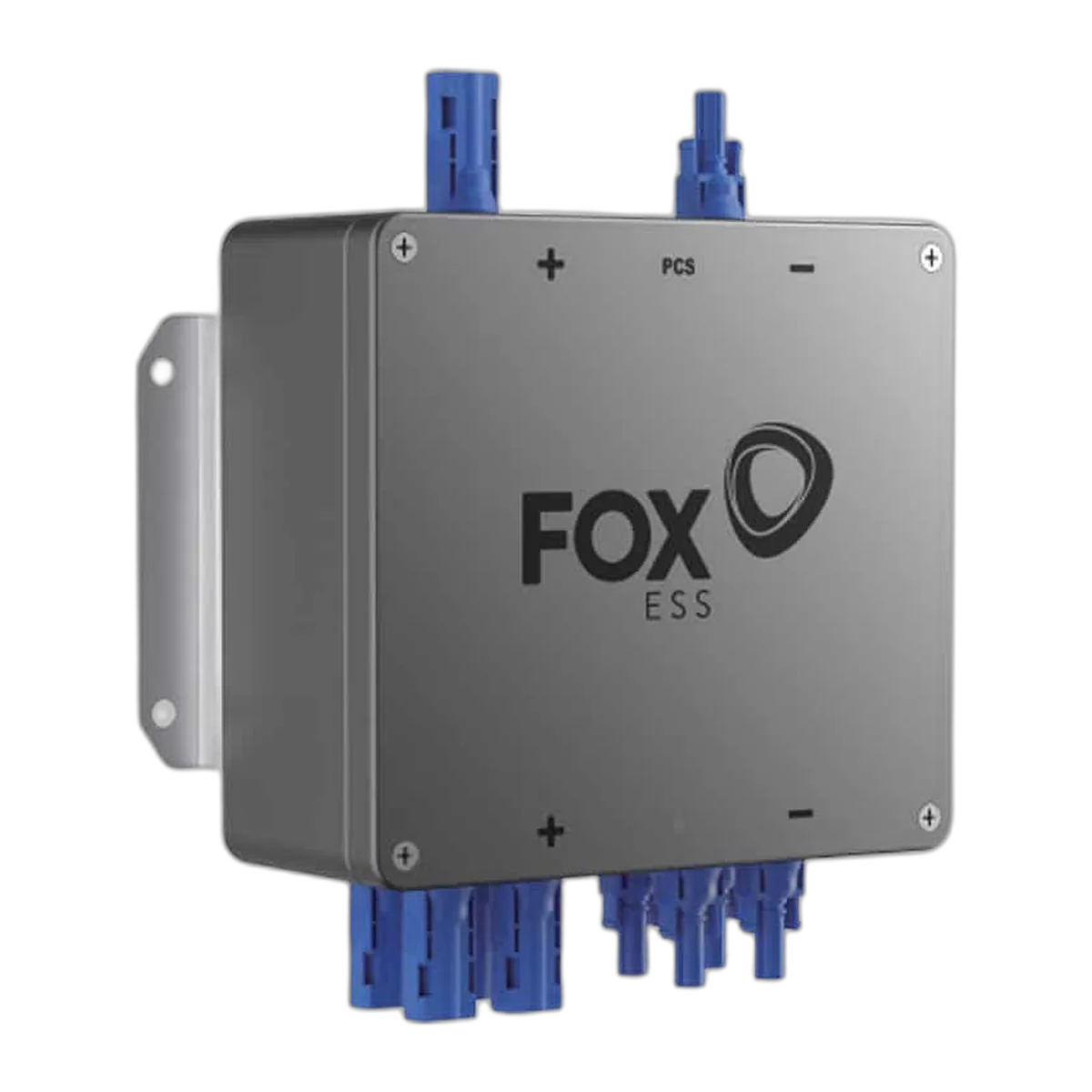

The Junction Box for EK/EP (HV-Junction Box-50) is a high-voltage junction box that enables the parallel connection of up to 4 FoxESS EK and EP series batteries. This allows the energy storage system capacity to be scaled up to 46.08 kWh. The solid enclosure with IP65 protection class and natural cooling allow for wall mounting both indoors and outdoors.
| Model | HV-Junction Box-50 |
| Compatible PCS | K, H1(G2), H3, H3 SMART, H3 PRO, US |
| Compatible batteries | EP5/EP6, EP11/EP12, EK5/EK6, EK11/EK12 |
| Rated voltage | 500 V |
| Max. continuous current | 50 A |
| Peak current | 65 A @60 s |
| Scalability | up to 46.08 kWh |
| Operating temperature | -20 ~ 55 °C |
| Humidity | 5 ~ 95% (non-condensing) |
| Dimensions (W×H×D) | 223 × 246 × 89 mm |
| Weight | 2.6 kg |
| Cooling | Natural |
| Mounting | Wall-mounted, indoor/outdoor |
| Max. operating altitude | ≤2000 m |
| Protection class | IP65 |
Foxess Junction Box for EK/EP — 4-way HV junction box — B2B wholesale prices for installers and contractors. Check availability and terms of cooperation: contact us.
