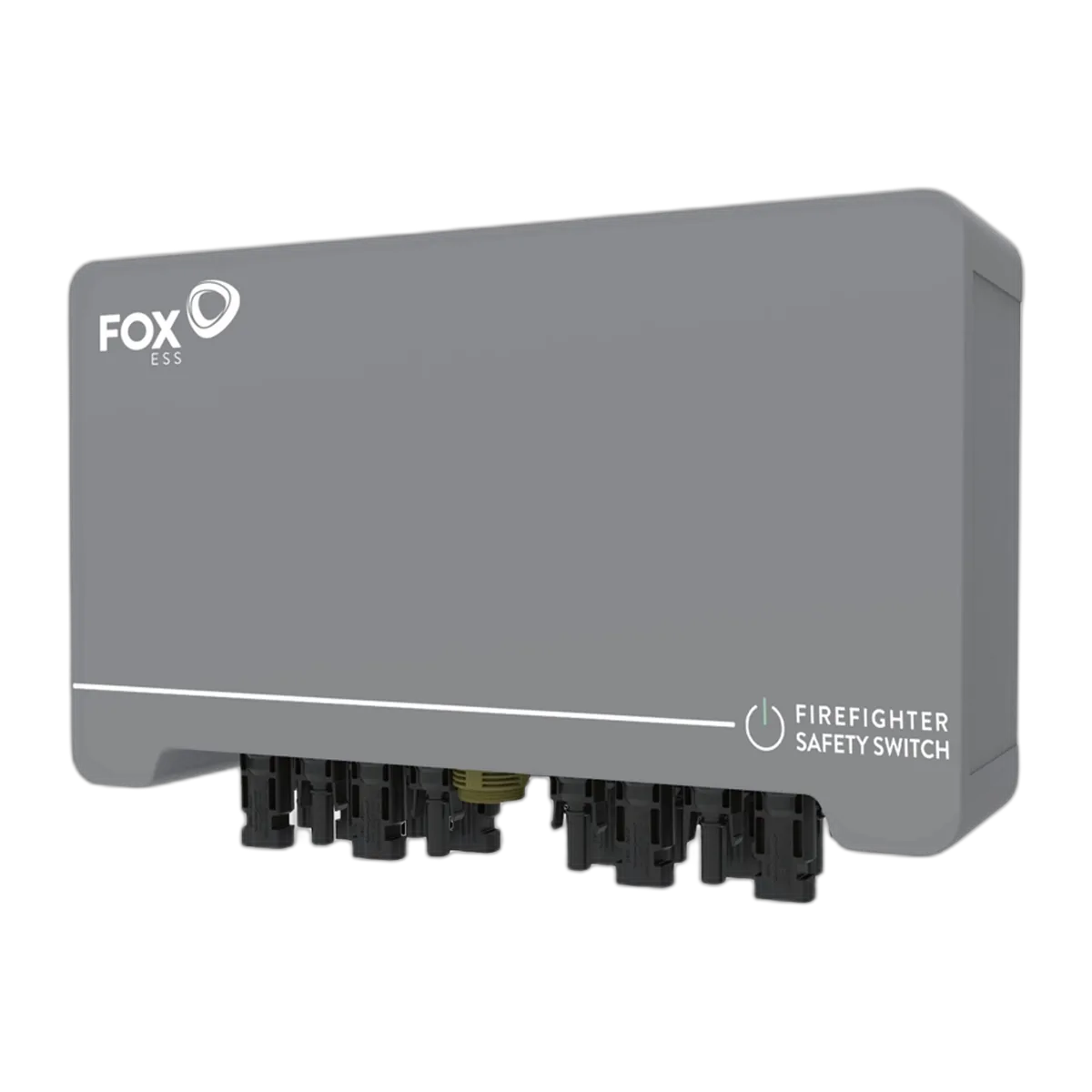

FoxESS S-Box plus is a PV firefighter safety switch in a robust IP66 enclosure, featuring a motor-driven DC disconnect. It supports 4 PV strings and up to 100 A current, automatically shutting down the system when the temperature exceeds 70°C.
FoxESS S-Box plus is a firefighter safety switch for residential and commercial photovoltaic installations. The device features a motor-driven DC disconnect that automatically shuts down the system if the temperature exceeds 70°C. A robust PC+ABS enclosure with IP66 protection rating and a breather valve protecting against condensation ensure reliable operation. The S-Box plus supports up to 4 PV strings and a current of up to 100 A.
| String voltage | 300 ~ 1500 Vdc |
| String current | 25/25/25/25 A |
| Number of strings | 4 |
| Switch wiring | 8 |
| Rated voltage | 230 Vac |
| Communication | RS485 |
| Operating temperature range | -20 ~ +50 °C |
| Max. temperature before shutdown | +70 °C |
| Protection rating | IP66 |
| Protection class | Class II |
| DC disconnection acc. to | EN 60947-1&3 |
| Certification | CE |
| Number of operations | 10000 |
Foxess S-Box plus — PV firefighter switch — B2B wholesale prices for installers and contractors. Check availability and terms of cooperation: contact us.
