Three-phase string inverter with 225 kW power from the HT 1500 V series, designed for utility-scale photovoltaic power plants. Available in 6 or 12 MPPT configurations, compatible with 182/210 mm bifacial modules, with string-level monitoring.

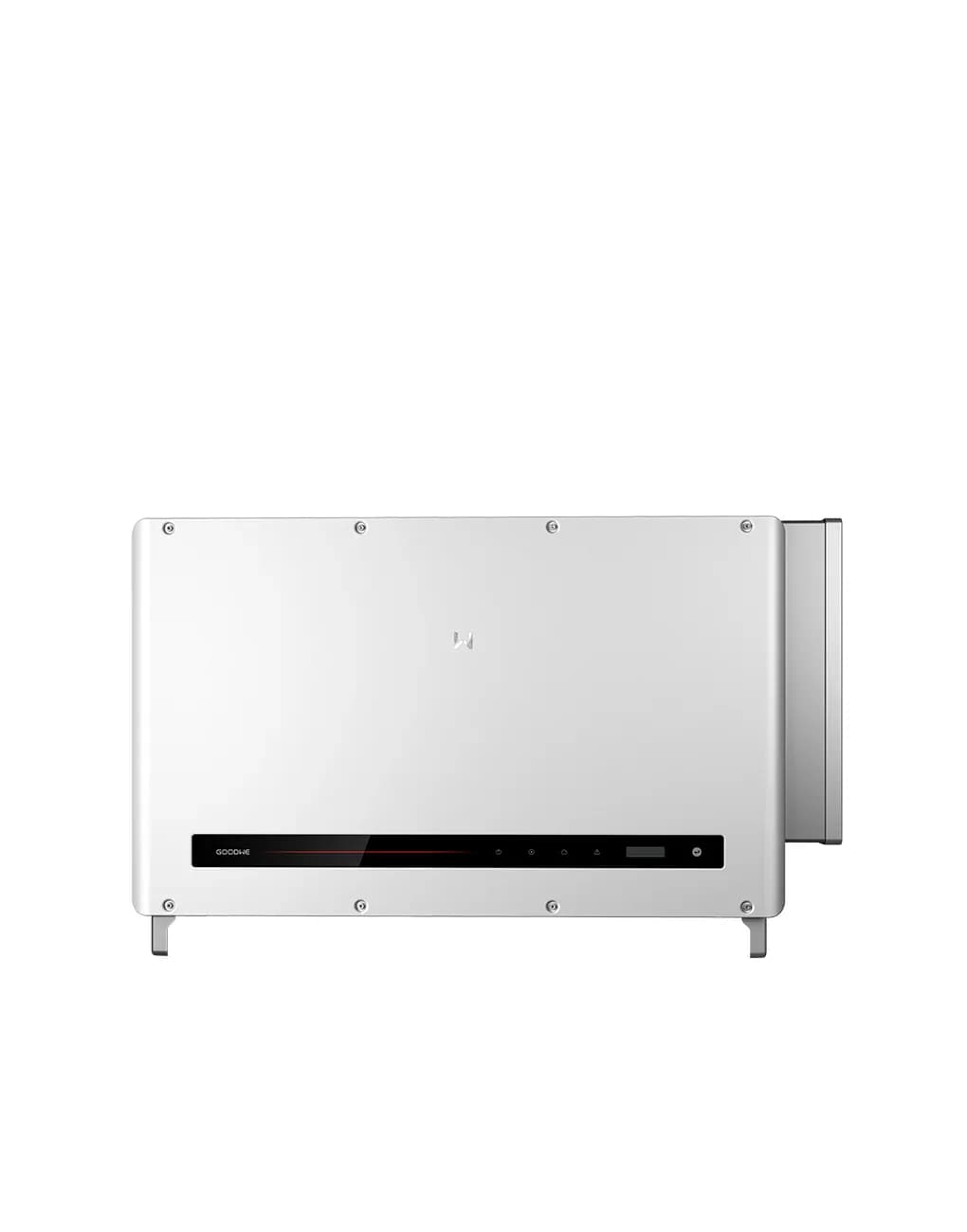

The Goodwe GW225K-HT / KN is a three-phase grid-tied string inverter from the HT 1500 V series, an excellent choice for utility-scale, centralized photovoltaic power plants. The inverter offers options with 6 or 12 MPPTs, reactive power compensation, and compatibility with 182/210 mm bifacial modules. String-level monitoring enables intelligent issue detection, and the KN version is equipped with an intelligent string protection switch safeguarding the DC side against short circuits and reverse polarity.
| Rated AC power | 225 kW |
| Max. AC active power | 247.5 kW |
| Inverter type | grid-tied, three-phase |
| Number of phases | 3 |
| Number of MPPTs | 6 / 12 (depending on version) |
| Max. DC voltage | 1500 V |
| MPPT voltage range | 500–1500 V |
| Startup voltage | 550 V |
| Nominal input voltage | 1160 V |
| Rated output voltage | 800 V, 3L / PE |
| Max. output current | 178.7 A |
| Max. efficiency | 99.0% |
| European efficiency | 98.5–98.7% |
| Operating temperature range | -30 – +60°C |
| Cooling | smart fans |
| Protection rating | IP66 |
| Weight | 111 kg |
| Dimensions (W × H × D) | 1091 × 678 × 341 mm |
GoodWe GW225K-HT / KN — three-phase string grid inverter 225 kW 1500 V for utility-scale i — B2B wholesale prices for installers and contractors. Check availability and terms of cooperation: contact us.
