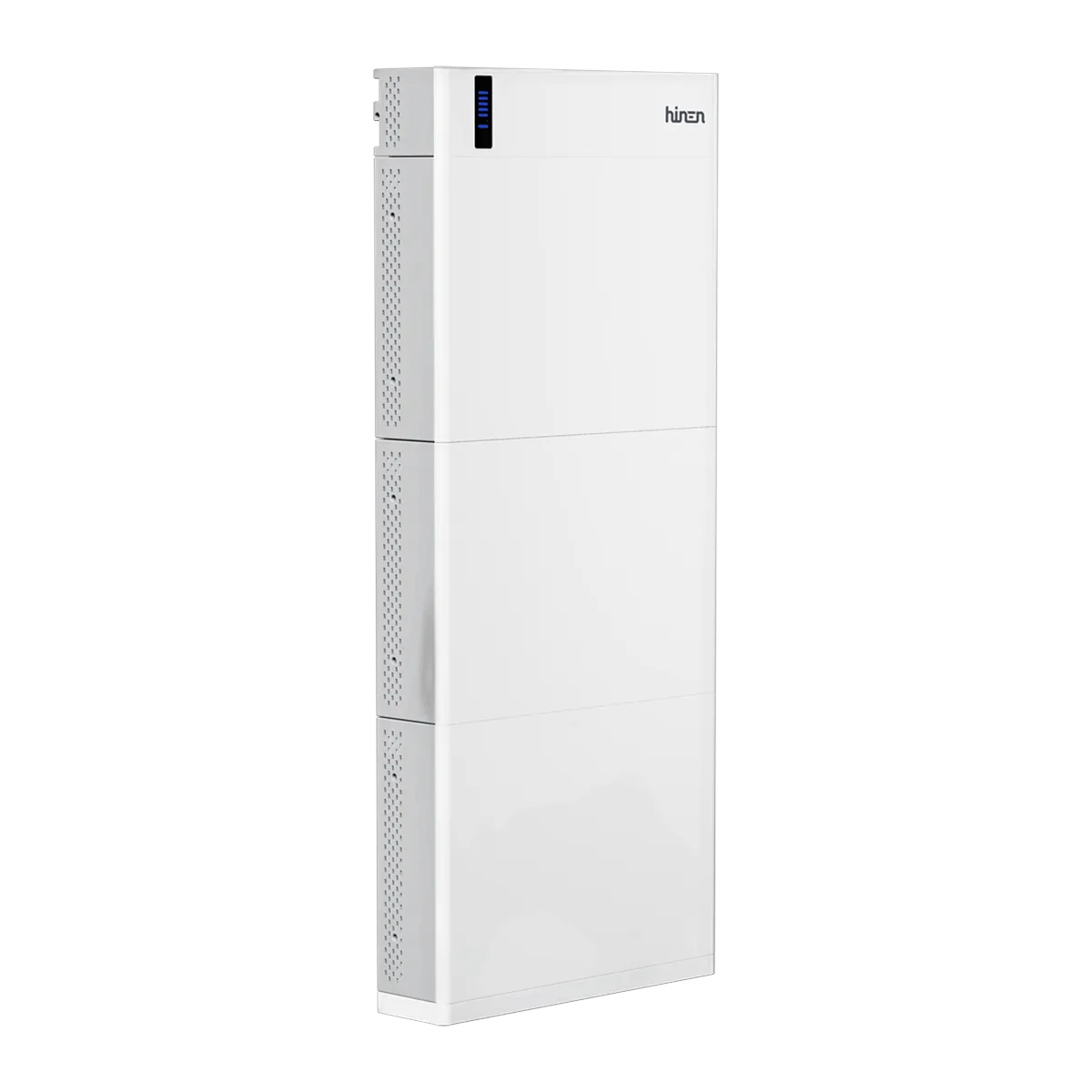

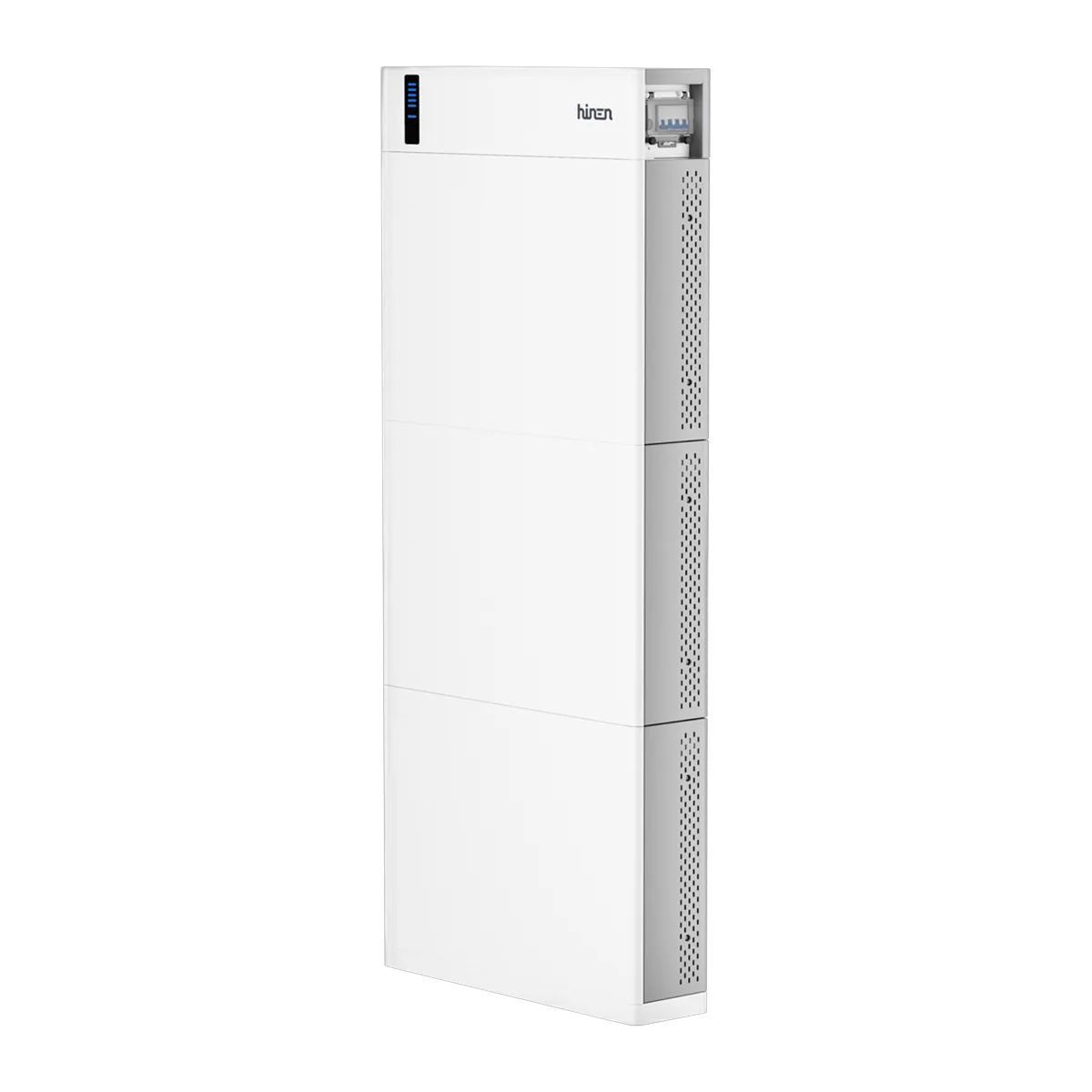

High-voltage Hinen BH7700A battery module with a capacity of 7.776 kWh in LiFePO4 technology. Plug & play design scalable up to 3 modules per cluster and a 5-layer protection system.
Hinen BH7700A is a high-voltage battery module with a nominal capacity of 7.776 kWh, built using LFP (LiFePO4) technology. The integrated design allows stacking one module on top of another in plug & play mode, without the need for extra wiring. System capacity can be expanded by connecting 1 to 3 modules in a cluster.
| Nominal capacity | 7.776 kWh |
| Usable energy | 6.998 kWh |
| Battery type | LFP (LiFePO4) |
| Battery configuration | 54S1P |
| Nominal voltage | 172.8 VDC |
| Operating voltage range | 135~194.4 VDC |
| Max. continuous charge/discharge current | 45 A |
| Max. charge/discharge power | 7.776 kW |
| Depth of discharge | 90% |
| Lifespan | 8000 cycles |
| Communication | CAN |
| Operating temperature | charging 0~55°C / discharging -20~60°C |
| Enclosure protection rating | IP65 |
| Cooling | Natural convection |
| Dimensions (W×H×D) | 730×710×180 mm |
| Net battery weight | 87 kg |
| Warranty | 10 years |
Hinen BH7700A — 7.78 kWh LiFePO4 high-voltage battery module — B2B wholesale prices for installers and contractors. Check availability and terms of cooperation: contact us.
