Three-phase Hoymiles HAT-10.0HV-EUG1 AC-coupled inverter with a power of 10 kW for PV retrofitting. High-voltage battery, smart EMS, and backup power.

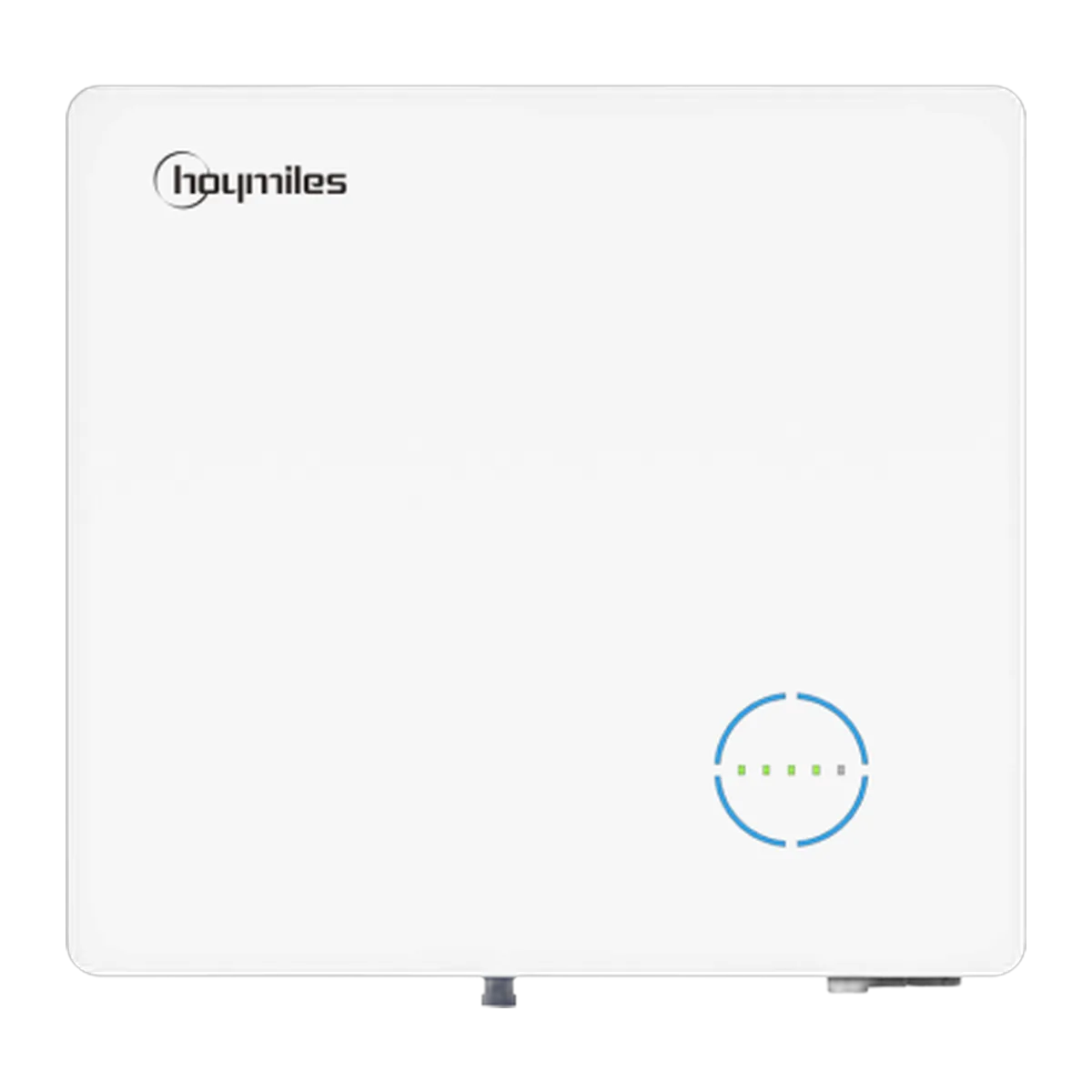

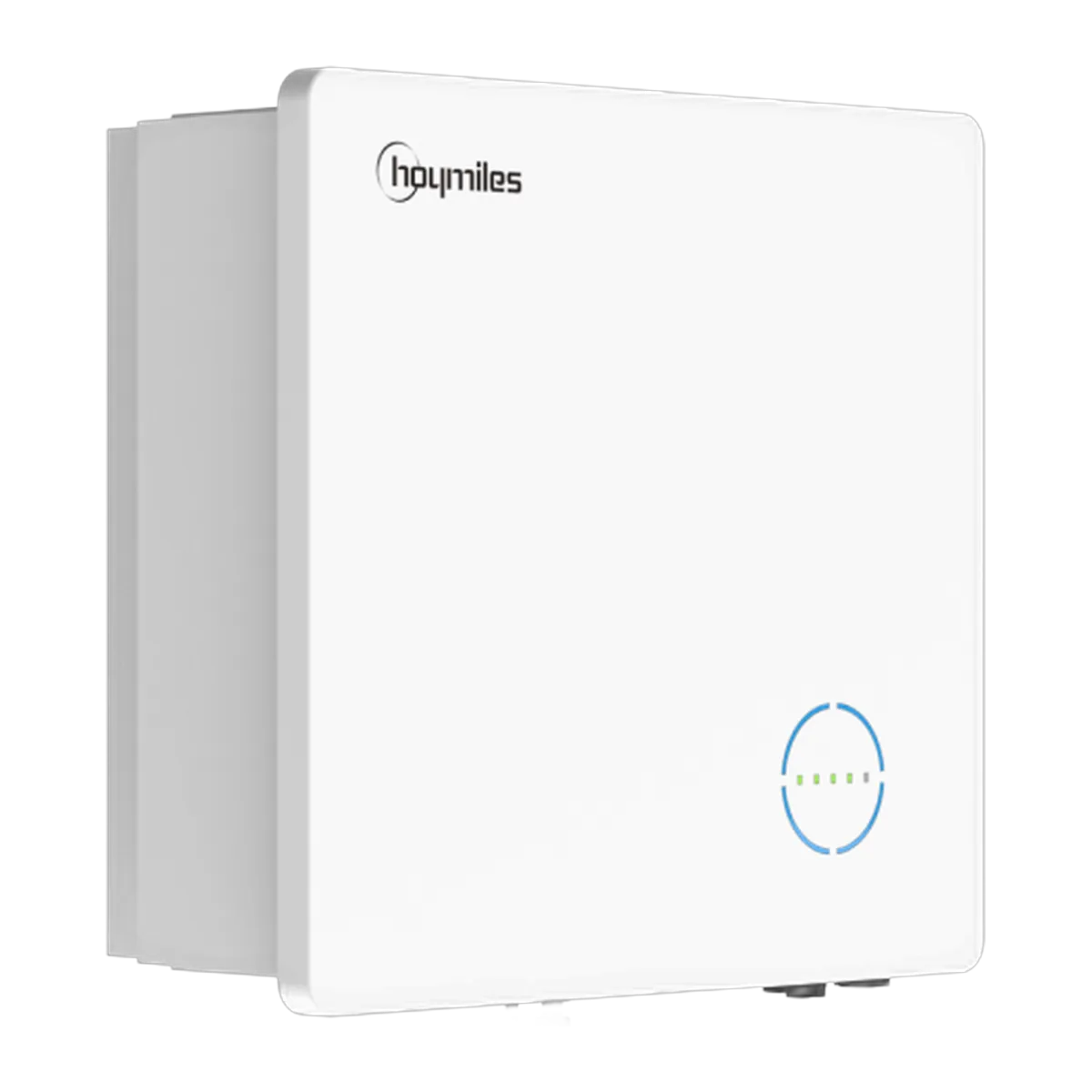

The Hoymiles HAT-10.0HV-EUG1 is a three-phase AC-coupled inverter with a rated power of 10 kW, designed for retrofitting existing photovoltaic installations. It works with the current PV inverter to create an AC-coupled system, and the smart EMS function supports self-consumption mode, economical mode, and backup mode. Monitoring and management are done via S-Miles Cloud.
| Rated AC power (on-grid) | 10000 W |
| Max. apparent power | 11000 VA |
| Max. input power | 16000 W |
| Max. battery charging/discharging power | 10000 / 10000 W |
| Max. charging/discharging current | 30 / 30 A |
| Battery voltage range | 170–600 V |
| Battery type | Li-ion |
| AC output voltage | 380/400 V (266–480 V) |
| Number of phases | 3 |
| Max. output current | 16.7 A |
| Max. efficiency | 97.5% |
| Backup switchover time | < 10 ms |
| Protection degree | IP65 |
| Communication | RS485, opt. Wi-Fi/Ethernet/4G; CAN (battery) |
| Operating temperature | -25 to +65°C |
| Dimensions (W×H×D) | 502 × 486 × 202 mm |
| Weight | 23 kg |
Hoymiles HAT-10.0HV-EUG1 — 3-phase AC-coupled inverter 10 kW — B2B wholesale prices for installers and contractors. Check availability and terms of cooperation: contact us.
