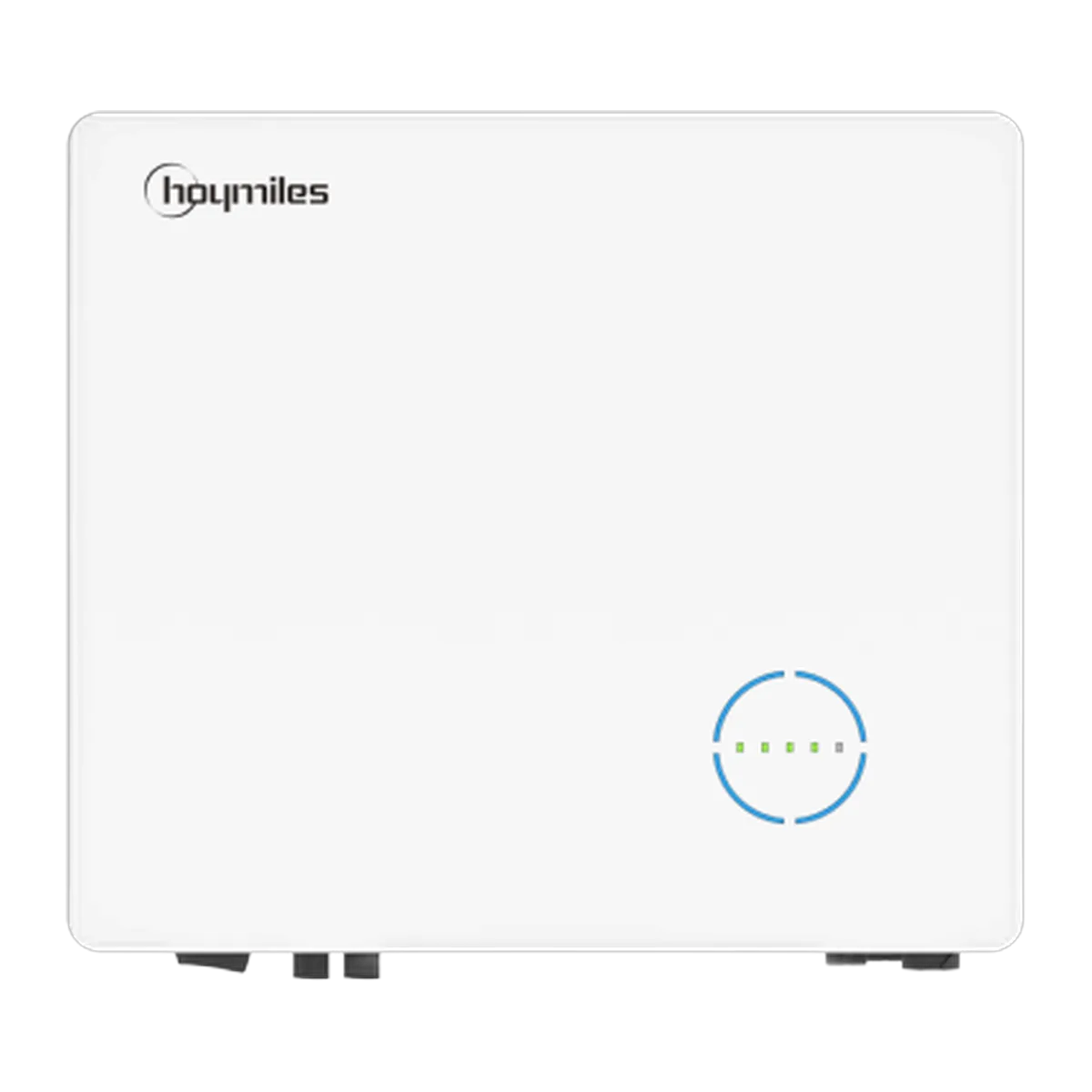

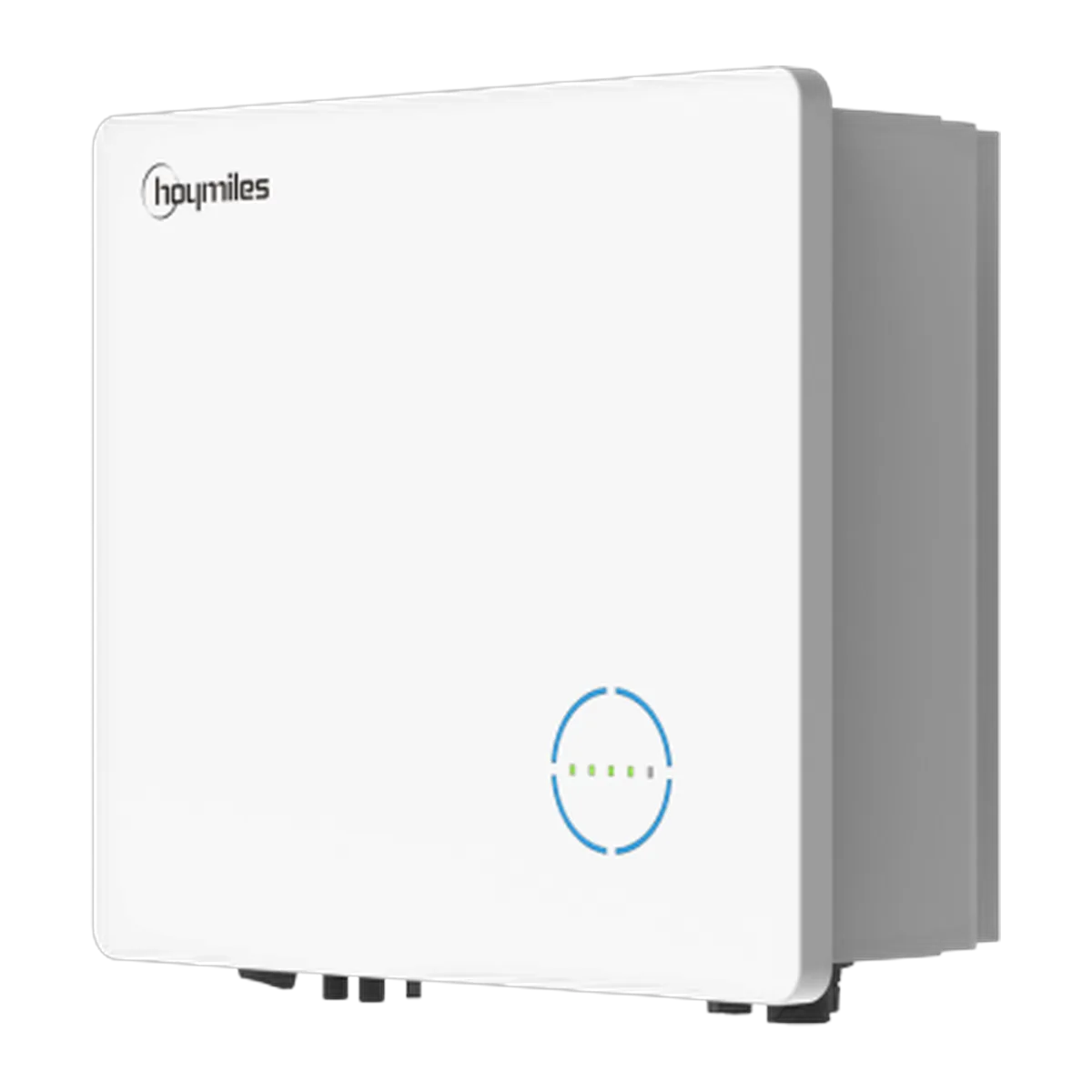

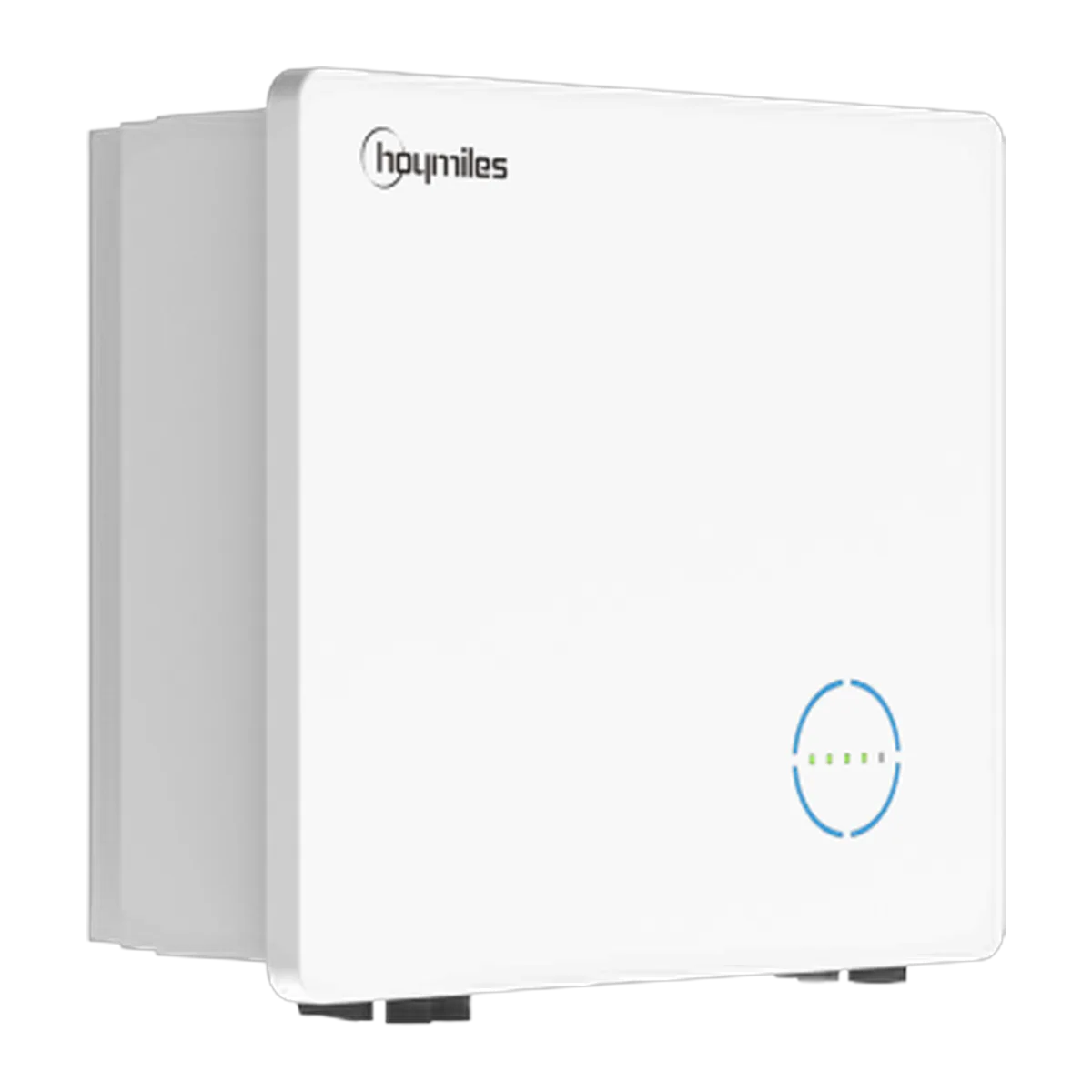

Single-phase 3.68 kW Hoymiles HYS-3.6LV-EUG1 hybrid inverter with two MPPT trackers and support for multiple battery types. Smart EMS function and S-Miles Cloud monitoring.
Hoymiles HYS-3.6LV-EUG1 is a high-efficiency single-phase hybrid inverter with a rated power of 3.68 kW from the HYS-LV series. The smart EMS function supports self-consumption, economic, and backup modes, adapting the system's operation to various scenarios. Monitoring via the S-Miles Cloud allows for remote diagnostics and system performance tracking.
| Rated AC power (on-grid) | 3680 W |
| Max. apparent power | 3680 VA |
| Max. PV power (recommended) | 6000 W |
| Max. PV input voltage | 550 V |
| MPPT voltage range | 125-500 V |
| Number of MPPT / strings | 2 / 2 |
| Max. input current | 14/14 A |
| Battery voltage range | 40-60 V |
| Max. charge/discharge power | 3600 / 3600 W |
| Battery type | Li-ion / lead-acid |
| AC output voltage | 230 V (161-276 V) |
| Grid frequency | 50/60 Hz |
| Max. efficiency | 97.6% |
| European efficiency | 97.0% |
| MPPT efficiency | 99.9% |
| Backup switchover time | <10 ms |
| Protection rating | IP65 |
| Topology | Transformerless / high-frequency isolation |
| Operating temperature range | -25 to +65 °C |
| Cooling | Natural convection |
| Communication | RS485, optional Wi-Fi/Ethernet/4G |
| Dimensions (W×H×D) | 502 × 461 × 202 mm |
| Weight | 24 kg |
Hoymiles HYS-3.6LV-EUG1 — 1-phase hybrid inverter 3.68 kW — B2B wholesale prices for installers and contractors. Check availability and terms of cooperation: contact us.
