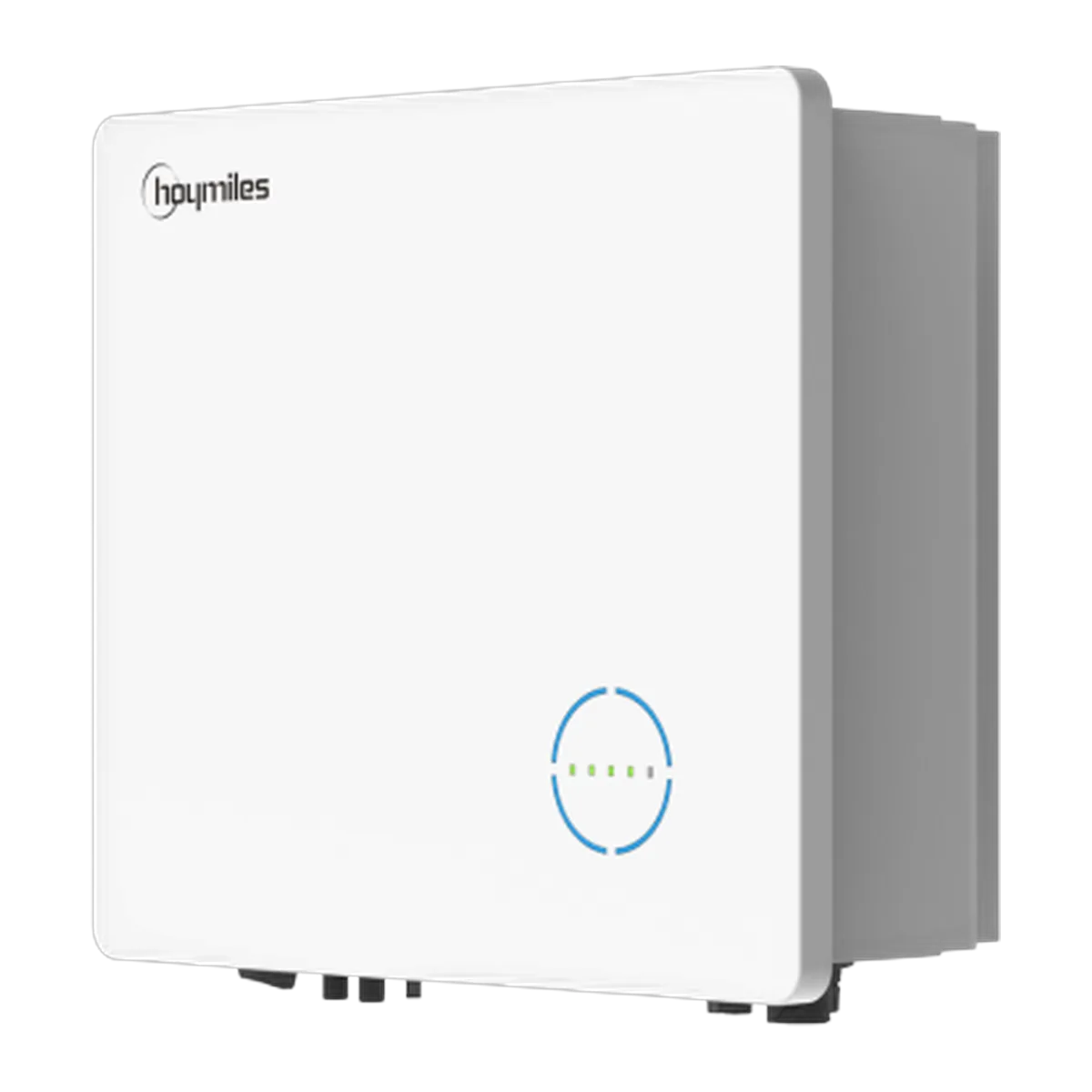

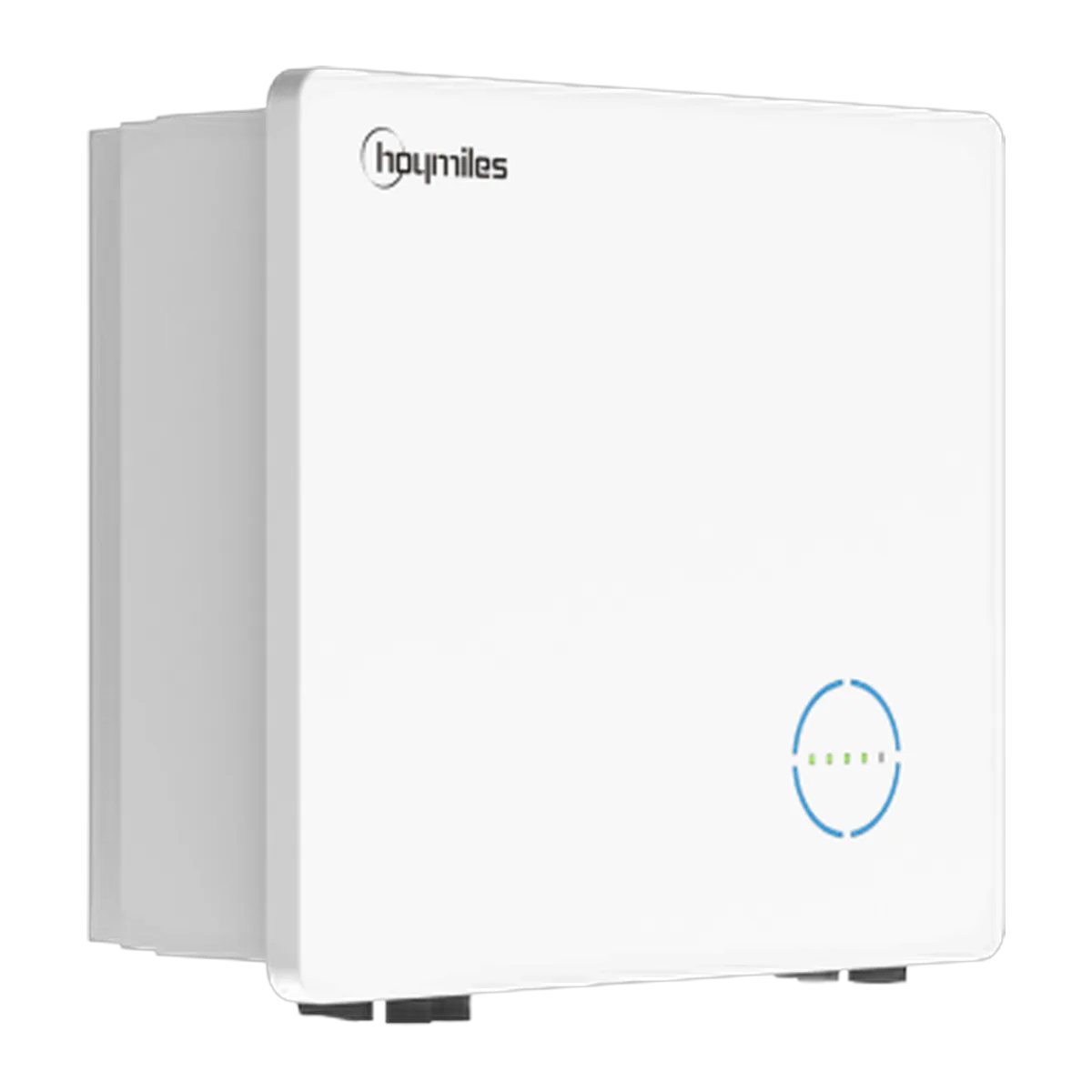

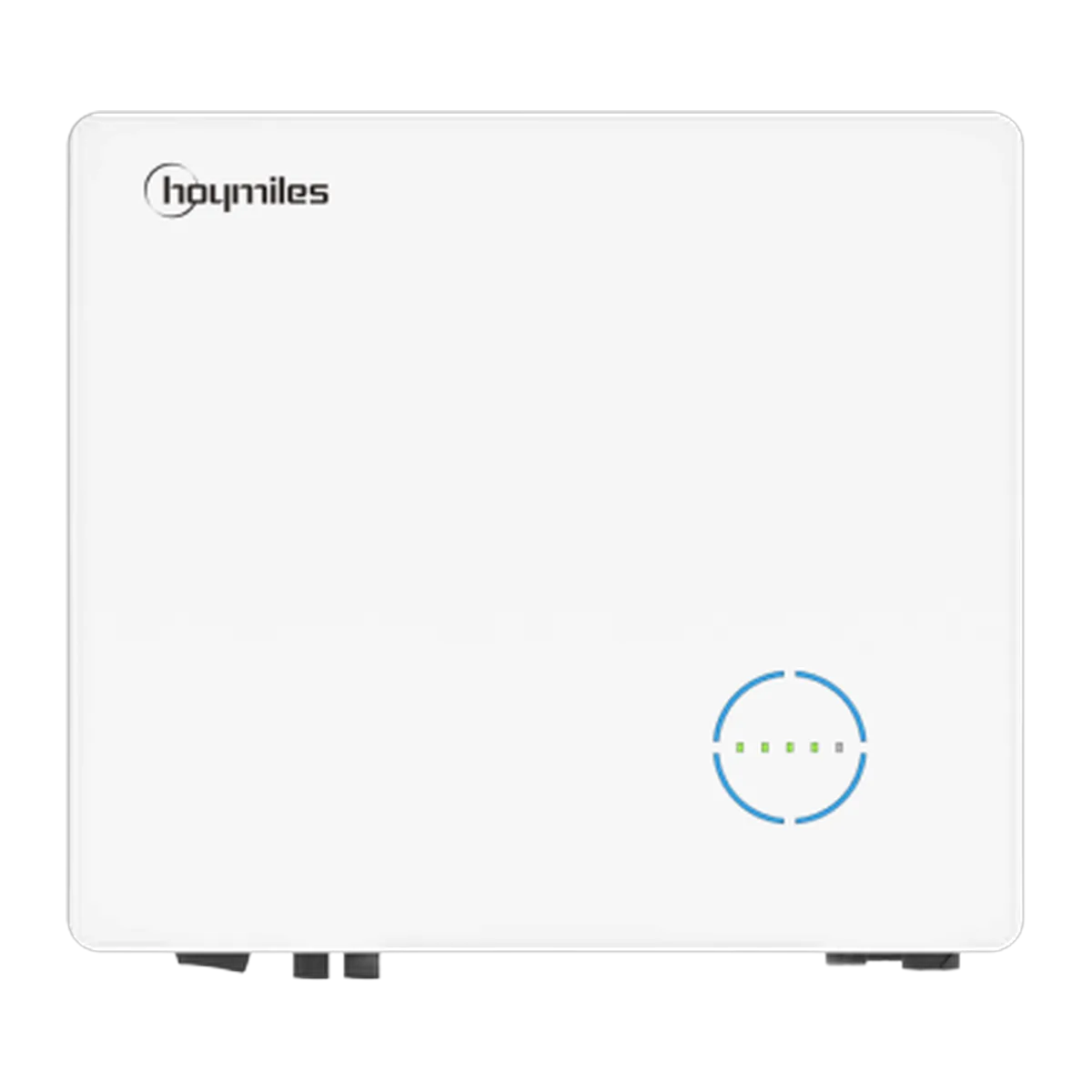

Single-phase hybrid inverter Hoymiles HYS-4.6LV-EUG1 4.6 kW with two MPPT trackers and backup power with switching time under 10 ms. It cooperates with low-voltage batteries and supports intelligent EMS energy management.
Hoymiles HYS-4.6LV-EUG1 is a high-performance, single-phase hybrid inverter with a rated power of 4.6 kW, belonging to the HYS-LV series. The intelligent EMS function supports self-consumption mode, economical mode, and backup mode, adapting to various application scenarios. Monitoring via S-Miles Cloud enables remote diagnostics and system operation tracking, maximizing energy production and battery utilization.
| Rated AC power (on-grid) | 4600 W |
| Max. apparent AC power | 4600 VA |
| Inverter type | hybrid, single-phase |
| Battery voltage range | 40–60 V |
| Max. charging/discharging current | 100 / 100 A |
| Max. charging/discharging power | 4600 / 4600 W |
| Recommended max. PV power | 7500 W |
| Max. PV input voltage | 550 V |
| MPPT voltage range | 125–500 V |
| Number of MPPTs / strings | 2 / 2 |
| Max. PV input current | 14 / 14 A |
| Max. efficiency | 97.6% |
| European efficiency | 97.0% |
| MPPT efficiency | 99.9% |
| AC output voltage | 230 V, 50/60 Hz |
| Max. output current | 20.0 A |
| Protection rating | IP65 |
| Cooling | natural convection |
| Dimensions (W × H × D) | 502 × 461 × 202 mm |
| Weight | 24 kg |
Hoymiles HYS-4.6LV-EUG1 — 4.6 kW single-phase hybrid inverter — B2B wholesale prices for installers and contractors. Check availability and terms of cooperation: contact us.
