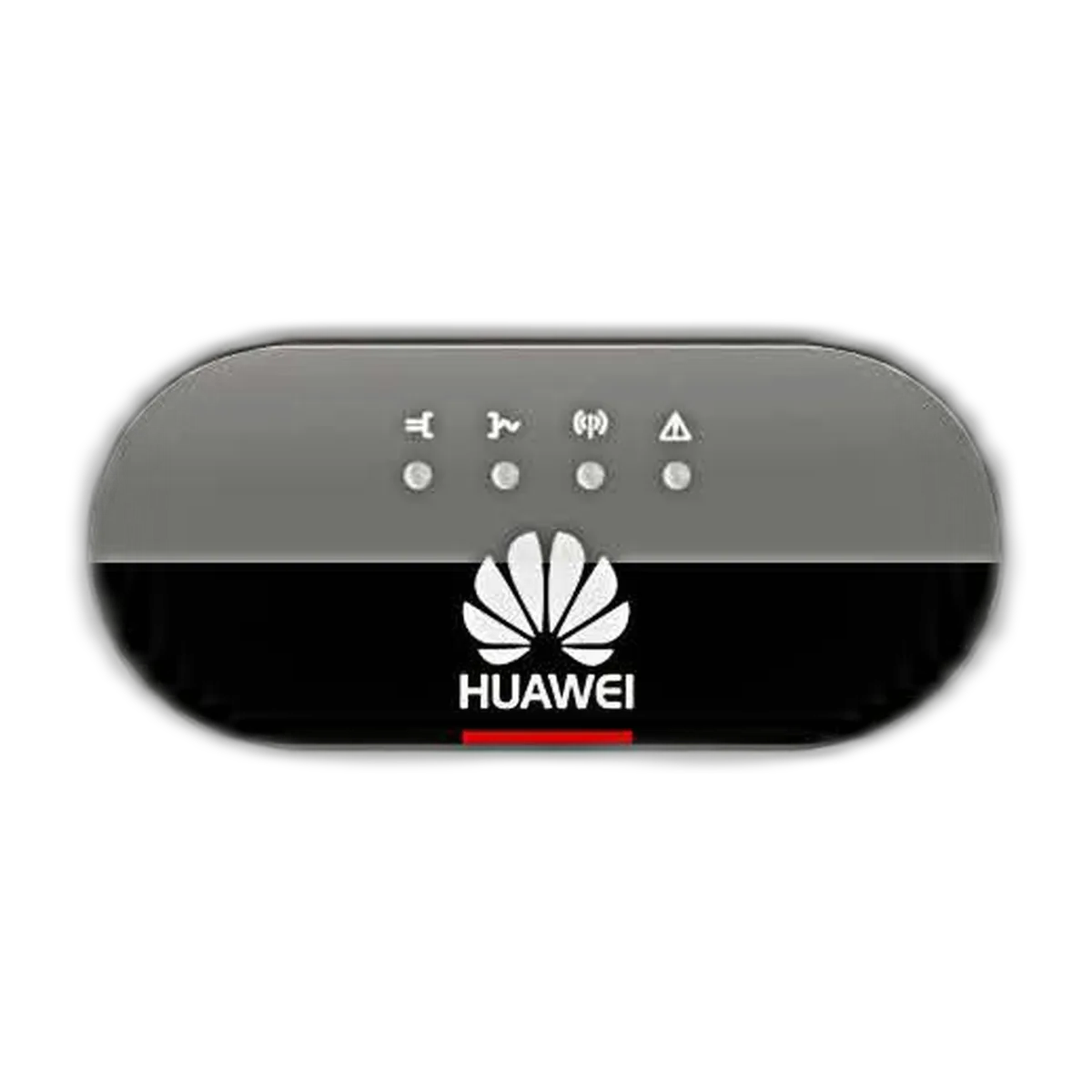

Three-phase grid inverter Huawei SUN2000-100KTL-M2 AFCI 100 kW with DC Type I+II surge protection, 10 MPPT trackers, and max. efficiency of 98.8%. For large installations and PV farms.
The Huawei SUN2000-100KTL-M2 AFCI, featuring additional DC Type I+II surge protection, is a 100 kW three-phase grid inverter designed for large commercial, industrial installations, and photovoltaic farms. Up to 10 MPPT trackers and 20 DC inputs ensure design flexibility, while a maximum efficiency of up to 98.8% translates into high energy yields. Built-in arc fault circuit interrupter (AFCI), smart cooling, and IP66 protection rating guarantee safe outdoor operation.
| Rated AC power | 100,000 W |
| DC surge protection | Type I+II |
| AC surge protection | Type II |
| Max. DC input voltage | 1100 V |
| MPPT voltage range | 200 V ~ 1000 V |
| Startup voltage | 200 V |
| Number of DC inputs | 20 |
| Number of MPPT trackers | 10 |
| Max. current per MPPT | 30 A |
| Output voltage | 3W+(N)+PE |
| Max. efficiency | 98.8% @480V / 98.6% @400V |
| Cooling | Smart Cooling |
| Protection rating | IP66 |
| Dimensions (W×H×D) | 1035 × 700 × 365 mm |
| Weight (with mounting plate) | 93 kg |
Huawei 3-phase inverter 100 kW AFCI Huawei SUN2000-100KTL M2 AFCI with type I+II DC protec — B2B wholesale prices for installers and contractors. Check availability and terms of cooperation: contact us.
