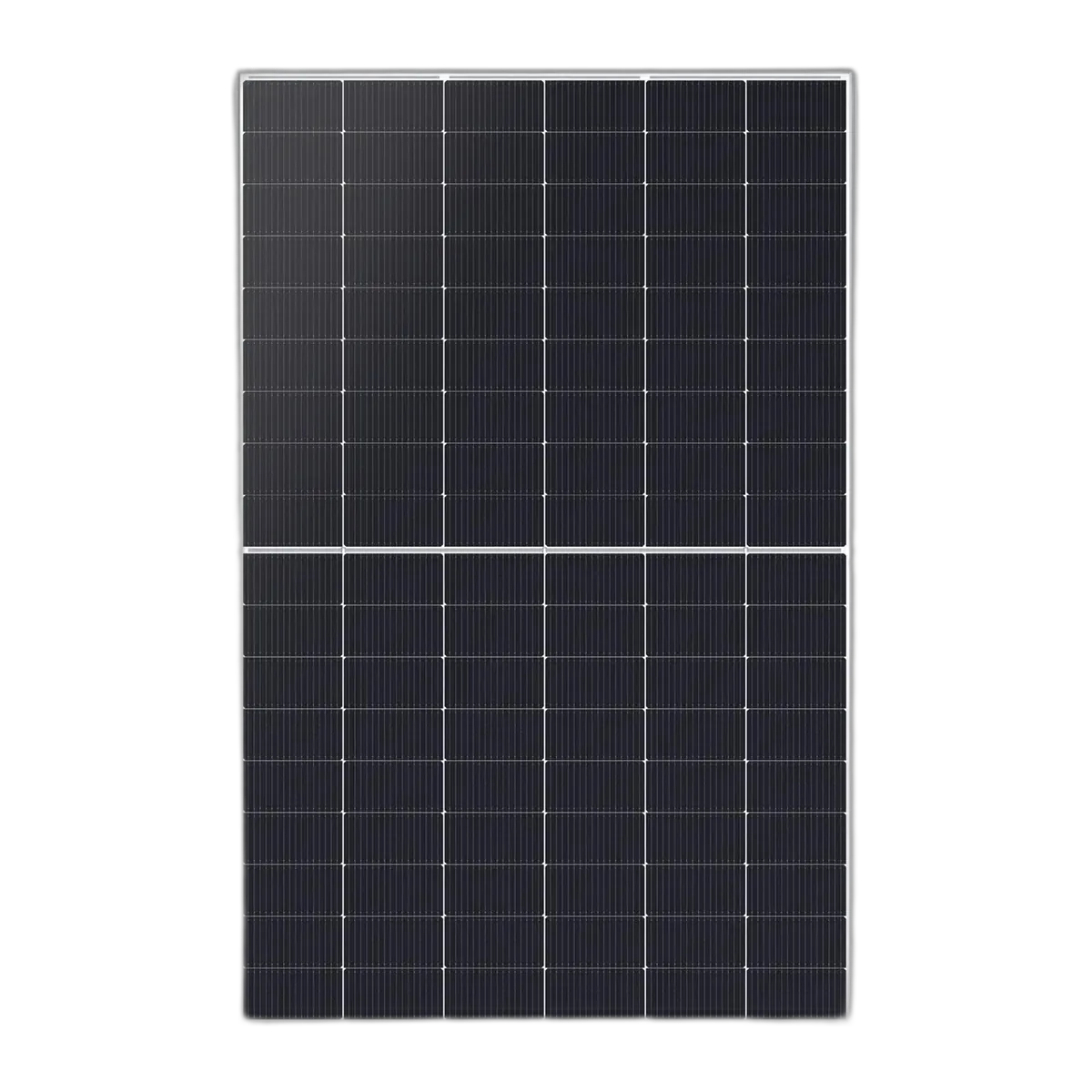

The JA Solar JAM54D40-470/LR_BF bifacial photovoltaic panel features a maximum power of 470 W. The device offers an efficiency of 23.5%, an IP68 protection rating, and a thirty-year power warranty.
The JA Solar JAM54D40-470/LR_BF is a robust solution for installers looking for highly efficient bifacial modules. These bifacial photovoltaic panels allow for additional energy yield from the rear surface, which translates into better installation performance. The design features an efficiency of 23.5% while maintaining dimensions of 1762 x 1134 x 30 mm. The device is adapted to operate in installations with a maximum system voltage of 1500 V.
| Maximum power | 470 W |
| Efficiency | 23.5% |
| Open-circuit voltage (Voc) | 40.4 V |
| MPP voltage (Vmpp) | 33.84 V |
| Short-circuit current (Isc) | 14.66 A |
| MPP current (Impp) | 13.89 A |
| Weight | 22 kg |
| Dimensions | 1762 x 1134 x 30 mm |
| Max. system voltage | 1500 V |
| Protection rating | IP68 |
| Product warranty | 12 years |
| Power warranty | 30 years |
| Operating temperature range | -40~+70 °C |
| Power temperature coefficient | -0.29%/°C |
| Rated power | 470 Wp |
| Design | bifacial |
JA Solar JAM54D40-470/LR_BF — bifacial photovoltaic panel 470 W — B2B wholesale prices for installers and contractors. Check availability and terms of cooperation: contact us.
