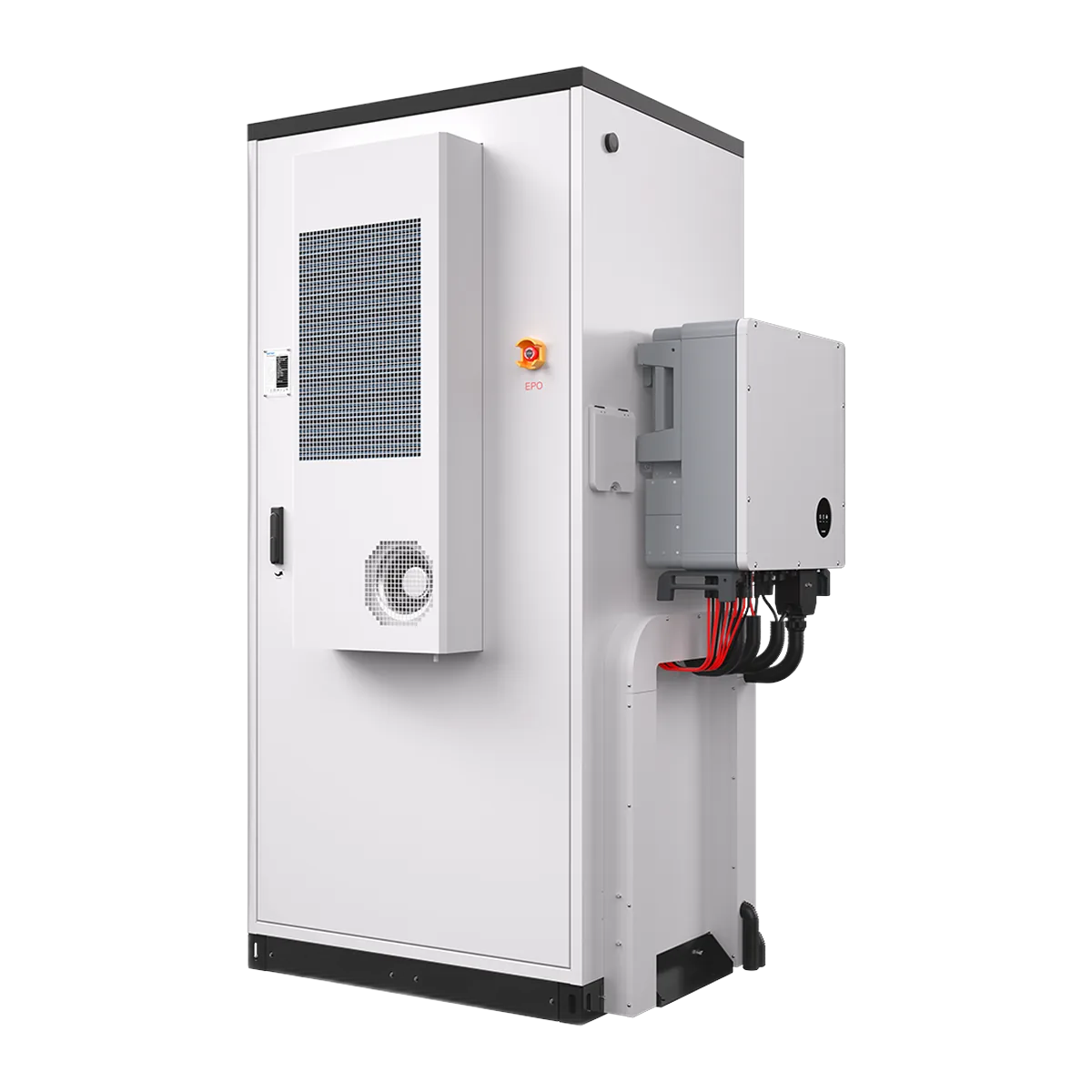

Three-phase hybrid inverter Kstar KAC50DP with a power of 50 kW and 3 MPPT trackers, designed for commercial energy storage systems of the BluePulse series. Transformerless, in an IP65 enclosure.
The Kstar 50 kW hybrid inverter (KAC50DP) is the heart of commercial and industrial energy storage systems of the BluePulse series. It provides a nominal AC output power of 50 kW at 400 V grid voltage, supports both on-grid and off-grid operation, and its maximum efficiency reaches 97.5%.
| Nominal AC output power | 50 kW |
| Maximum AC output power | 55 kVA |
| Maximum efficiency | 97.5% |
| Number of MPPTs | 3 (2 inputs each) |
| MPPT voltage range | 350 V – 800 V |
| Max. MPPT voltage | 1000 V |
| Max. current per MPPT | 36 A |
| Nominal AC voltage | 400 V |
| Frequency | 50 / 60 Hz |
| Topology | Transformerless |
| Protection class | IP65 |
| Cooling | Air cooling |
| Operating temperature range | -25 ~ 60°C |
| Communication | RS-485 / CAN |
| Dimensions (W × H × D) | 650 × 715 × 325 mm |
| Weight | 76 kg |
Kstar Hybrid solar inverter 50KW,AC400V,50/60HZ,3MPPT — 50 kW BluePulse series hybrid inve — B2B wholesale prices for installers and contractors. Check availability and terms of cooperation: contact us.
