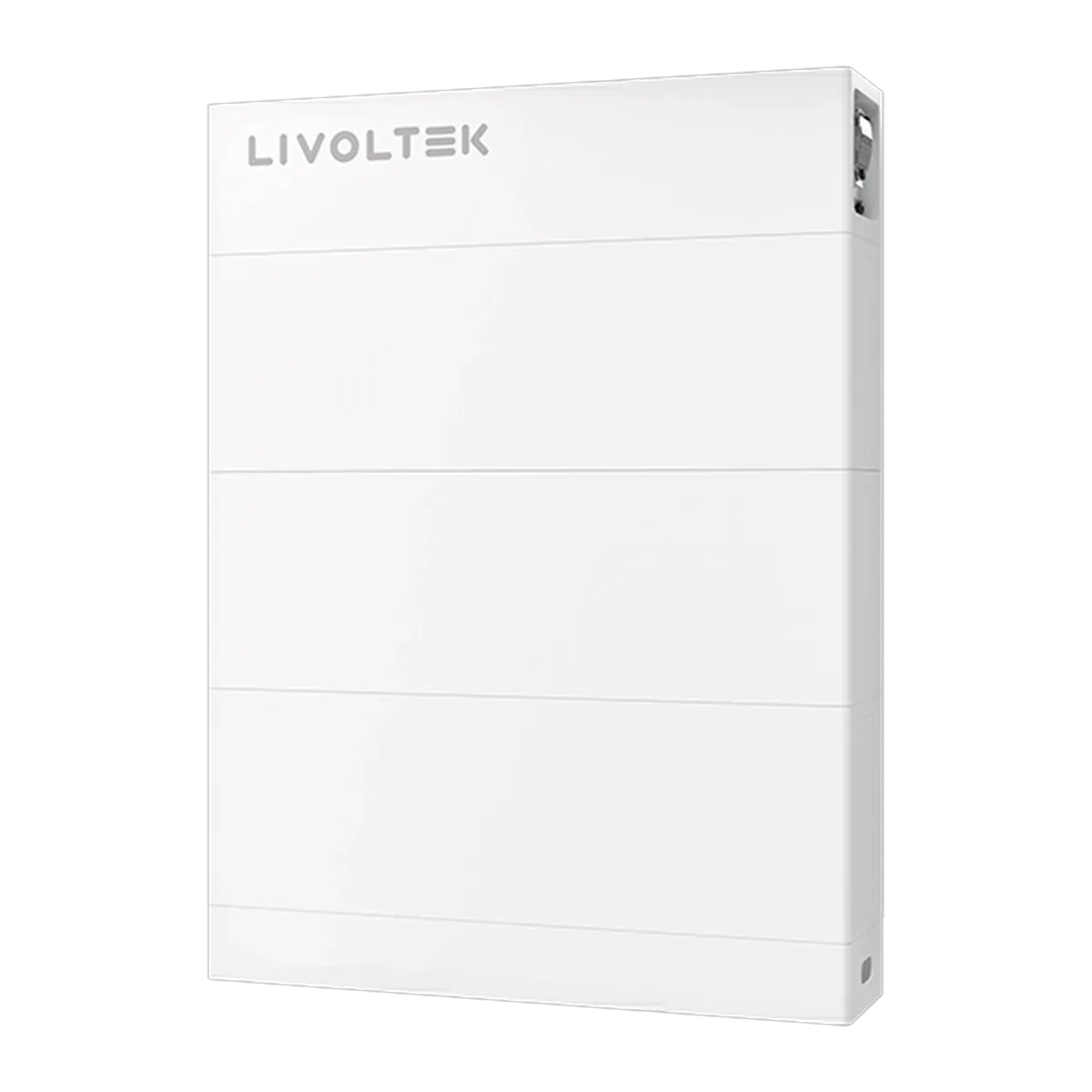

High-voltage, modular Livoltek BHF-S-10 (Gen2) energy storage with a total capacity of 10.2 kWh (9.2 kWh usable) using LiFePO4 cells. Consists of 2 modules, IP65 protection rating.
Livoltek BHF-S-10 (Gen2) is a high-voltage, modular energy storage for residential photovoltaic installations with a total capacity of 10.2 kWh and a usable capacity of 9.2 kWh. The system, built with 2 battery modules, uses safe, prismatic LiFePO4 cells with a nominal voltage of 204.8 V and a 90% DOD depth of discharge. The stacked design and IP65 protection rating allow for indoor and outdoor installation.
| Manufacturer | Livoltek |
| Model | BHF-S-10 (Gen2) |
| Total capacity | 10.2 kWh |
| Usable capacity | 9.2 kWh |
| Number of modules | 2 |
| Nominal voltage | 204.8 V |
| Operating voltage range | 172.8 V - 230.4 V |
| Nominal power | 5.1 kW |
| Maximum power | 9.8 kW |
| Cell type | LiFePO4 (prismatic) |
| Depth of discharge (DOD) | 90% |
| Lifespan | 6000 cycles |
| Protection rating | IP65 |
| Communication | CAN |
| Dimensions (W×H×D) | 870 × 878.5 × 208.7 mm |
| Net weight | 147 kg |
| Certificates | CE, UN38.3, IEC62619, IEC61000 |
Livoltek BHF-S-10 (Gen2) — high-voltage energy storage 10.2 kWh LiFePO4 — B2B wholesale prices for installers and contractors. Check availability and terms of cooperation: contact us.
