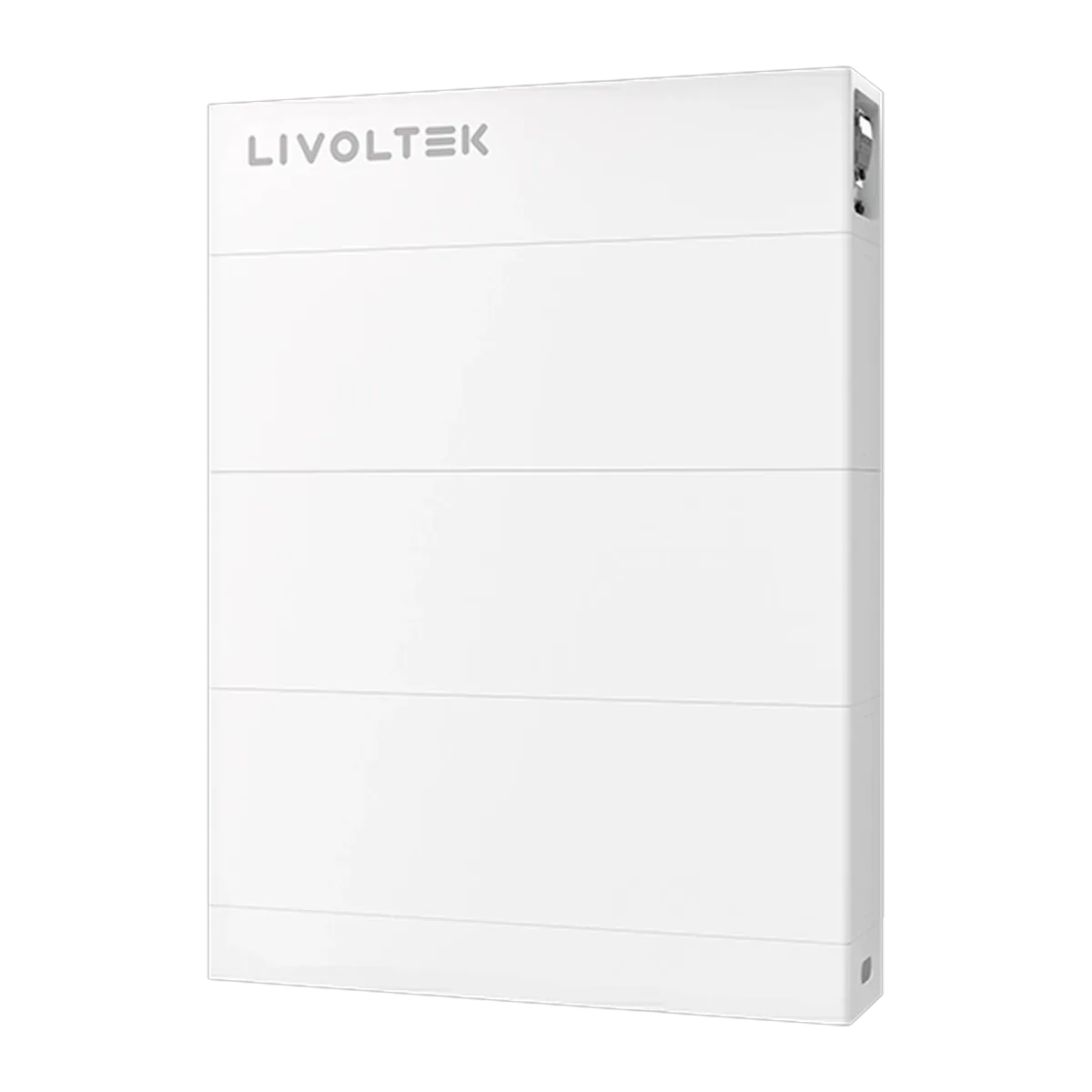

Livoltek BHF-S-15 (Gen2) high-voltage, modular energy storage with a total capacity of 15.4 kWh (13.8 kWh usable) with LiFePO4 cells. It consists of 3 modules, IP65 protection class.
Livoltek BHF-S-15 (Gen2) is a high-voltage, modular energy storage for residential PV systems with a total capacity of 15.4 kWh and a usable capacity of 13.8 kWh. The system, built with 3 battery modules, uses safe prismatic LiFePO4 cells with a nominal voltage of 307.2 V and 90% DOD. The stackable design and IP65 protection class allow for both indoor and outdoor installation.
| Manufacturer | Livoltek |
| Model | BHF-S-15 (Gen2) |
| Total capacity | 15.4 kWh |
| Usable capacity | 13.8 kWh |
| Number of modules | 3 |
| Nominal voltage | 307.2 V |
| Operating voltage range | 259.2 V - 345.6 V |
| Nominal power | 7.7 kW |
| Maximum power | 14.7 kW |
| Cell type | LiFePO4 (prismatic) |
| Depth of discharge (DOD) | 90% |
| Lifespan | 6000 cycles |
| Protection class | IP65 |
| Communication | CAN |
| Dimensions (W×H×D) | 870 × 1167 × 208.7 mm |
| Net weight | 209 kg |
| Certifications | CE, UN38.3, IEC62619, IEC61000 |
Livoltek BHF-S-15 (Gen2) — high-voltage energy storage 15.4 kWh LiFePO4 — B2B wholesale prices for installers and contractors. Check availability and terms of cooperation: contact us.
