Single-phase 4.6 kW Livoltek grid-tied inverter with two MPPT trackers and up to 98.4% efficiency. A compact inverter for residential photovoltaics with Wi-Fi and Bluetooth monitoring and an optional AFCI module.

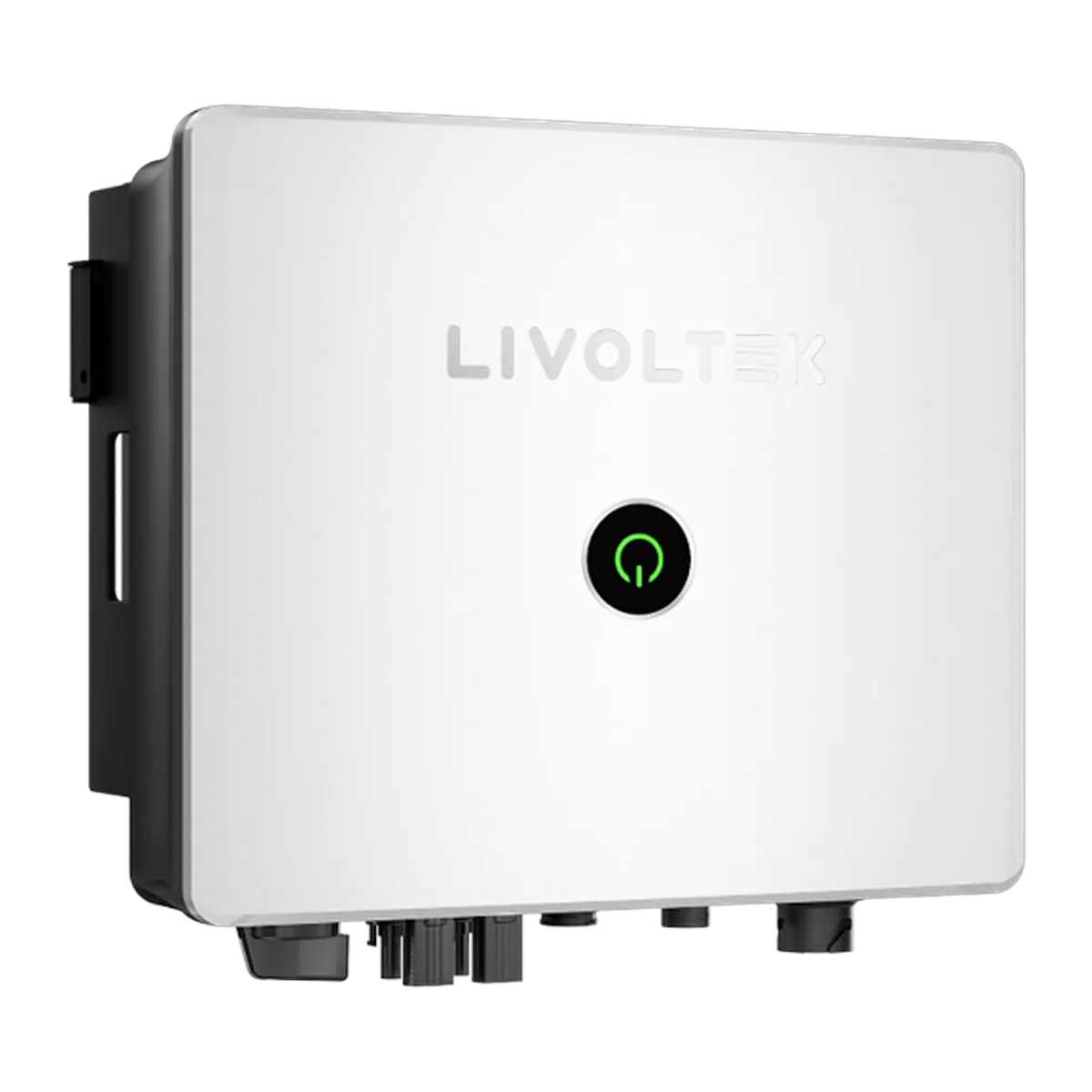

Livoltek GT1-4K6S1R11001 is a single-phase grid-tied inverter designed for residential photovoltaic installations. Its compact design and two MPPT trackers ensure flexible string configuration and high energy conversion efficiency.
| Rated AC power | 4600 W |
| Maximum apparent power | 4600 VA |
| Max. PV power | 6900 Wp |
| Max. PV voltage | 550 V |
| MPPT voltage range | 70–545 V |
| Number of MPPT | 2 |
| Max. efficiency | 98.4% |
| Max. AC output current | 20.0 A |
| Grid voltage | 220/230/240 V, L+N+PE |
| Number of phases | 1 |
| Communication | RS485, Wi-Fi + Bluetooth, DRM |
| Protection class | IP65 |
| Cooling | natural |
| Dimensions (W×H×D) | 350×315×176 mm |
| Weight | 12.5 kg |
| Operating temperature range | –30°C ~ +60°C |
Livoltek GT1-4K6S1R11001 — 1-phase grid inverter 4.6 kW — B2B wholesale prices for installers and contractors. Check availability and terms of cooperation: contact us.
