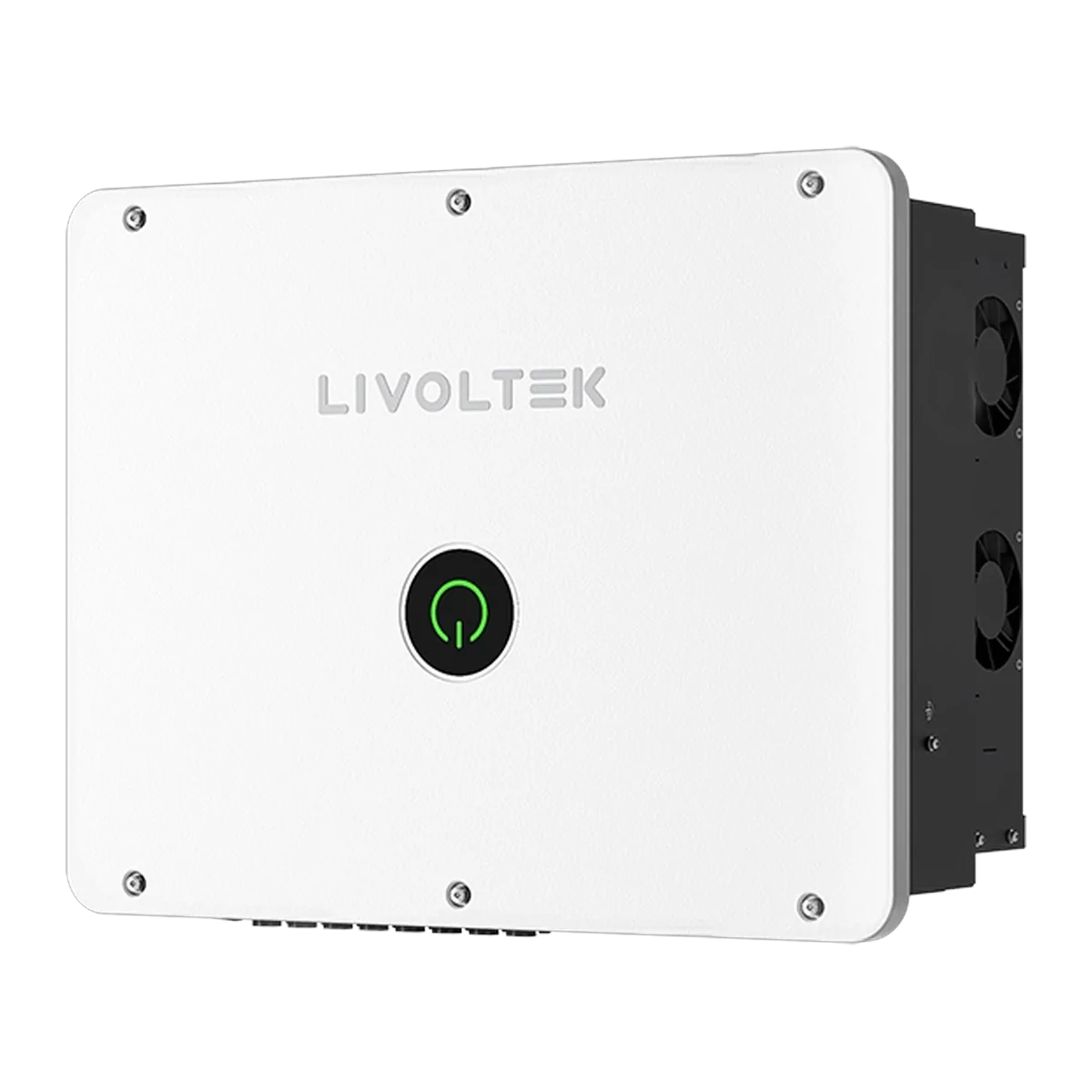

Livoltek GT3-30KT1 30 kW three-phase grid-tied inverter with 2 MPPT trackers, max string current of 20 A, and 98.5% efficiency. For commercial roof installations.
The Livoltek GT3-30KT1 is a 30 kW three-phase grid-tied inverter designed for residential, commercial, and industrial rooftop installations. Each PV string accepts currents up to 20 A and supports high-power modules, including those above 600 W, while a precise MPPT algorithm ensures high yields even with complex roof orientations.
| AC rated power | 30,000 W |
| Max apparent power | 33,000 VA |
| Max DC power | 45,000 Wp |
| Max DC voltage | 1100 V |
| Start-up voltage | 180 V |
| MPPT voltage range | 180–1000 V |
| Number of MPPTs | 2 |
| AC rated output current | 45.6 A |
| Max AC output current | 50.1 A |
| AC grid voltage | 3/N/PE, 380 V / 400 V |
| Max efficiency | 98.5% |
| European efficiency | 98.3% |
| Dimensions (W×H×D) | 613×481×251 mm |
| Weight | 44 kg |
| Protection rating | IP65 |
| Cooling | fan |
| Operating temperature range | -30°C to 60°C |
Livoltek GT3-30KT1 — 30 kW three-phase grid-tied inverter — B2B wholesale prices for installers and contractors. Check availability and terms of cooperation: contact us.
