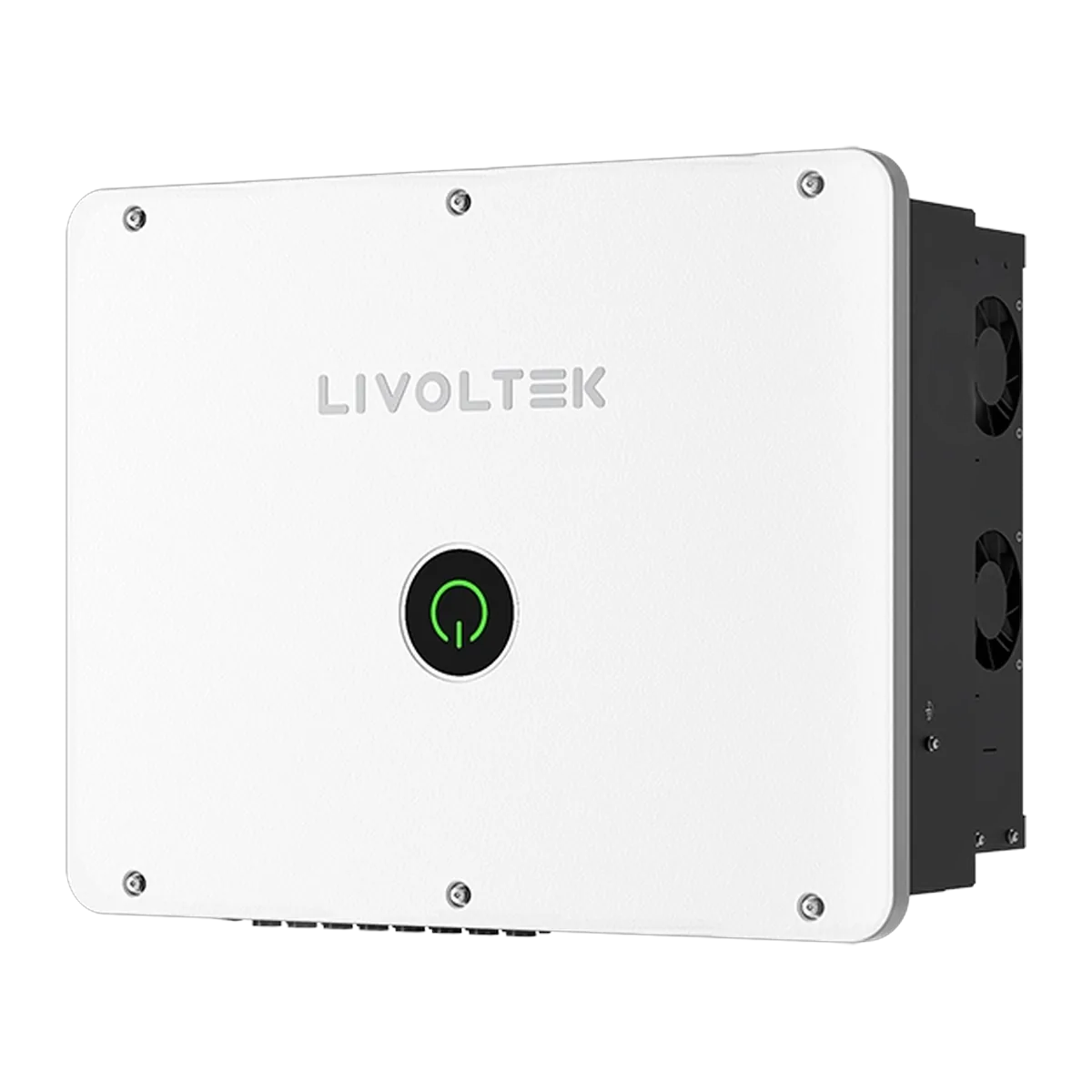

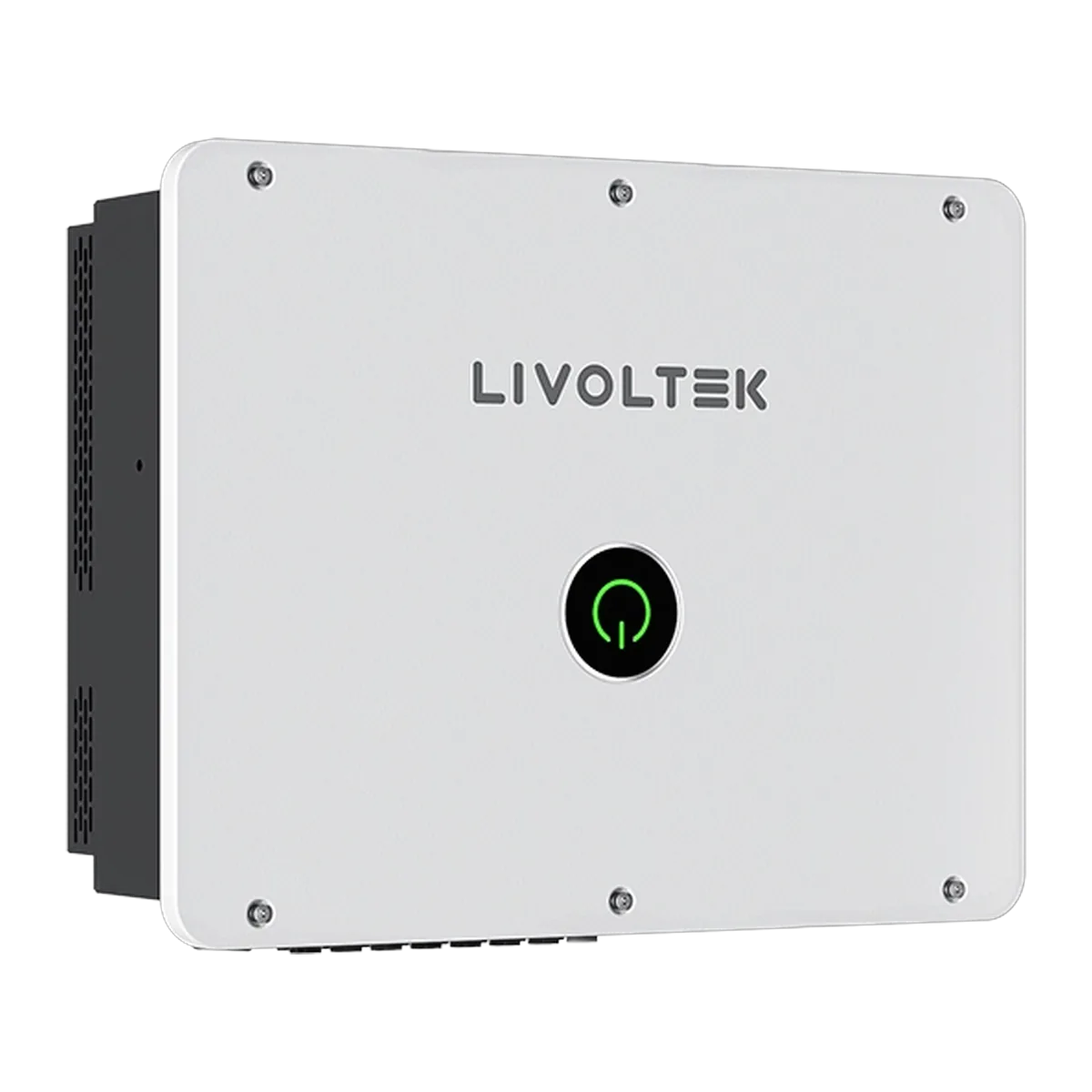

Livoltek GT3-40KQ1 40 kW three-phase on-grid inverter with 3 MPPT trackers, string current support up to 20 A, and 98.5% efficiency. For commercial and industrial installations.
Livoltek GT3-40KQ1 is a three-phase on-grid inverter with a rated power of 40 kW, designed for residential, commercial, and industrial rooftop installations. Three MPPT trackers and a precise algorithm allow for flexible adaptation to complex roof orientations and high-power modules above 600 W.
| Rated AC power | 40,000 W |
| Max. apparent power | 44,000 VA |
| Max. DC power | 60,000 Wp |
| Max. DC voltage | 1100 V |
| Start-up voltage | 180 V |
| MPPT voltage range | 180–1000 V |
| Number of MPPTs | 3 |
| Rated AC output current | 60.8 A |
| Max. AC output current | 66.9 A |
| AC grid voltage | 3/N/PE, 380 V / 400 V |
| Max. efficiency | 98.5% |
| European efficiency | 98.3% |
| Dimensions (W×H×D) | 613×481×251 mm |
| Weight | 47 kg |
| Protection rating | IP65 |
| Cooling | fan |
| Operating temperature range | -30°C to 60°C |
Livoltek GT3-40KQ1 — 40 kW three-phase grid-tied inverter — B2B wholesale prices for installers and contractors. Check availability and terms of cooperation: contact us.
