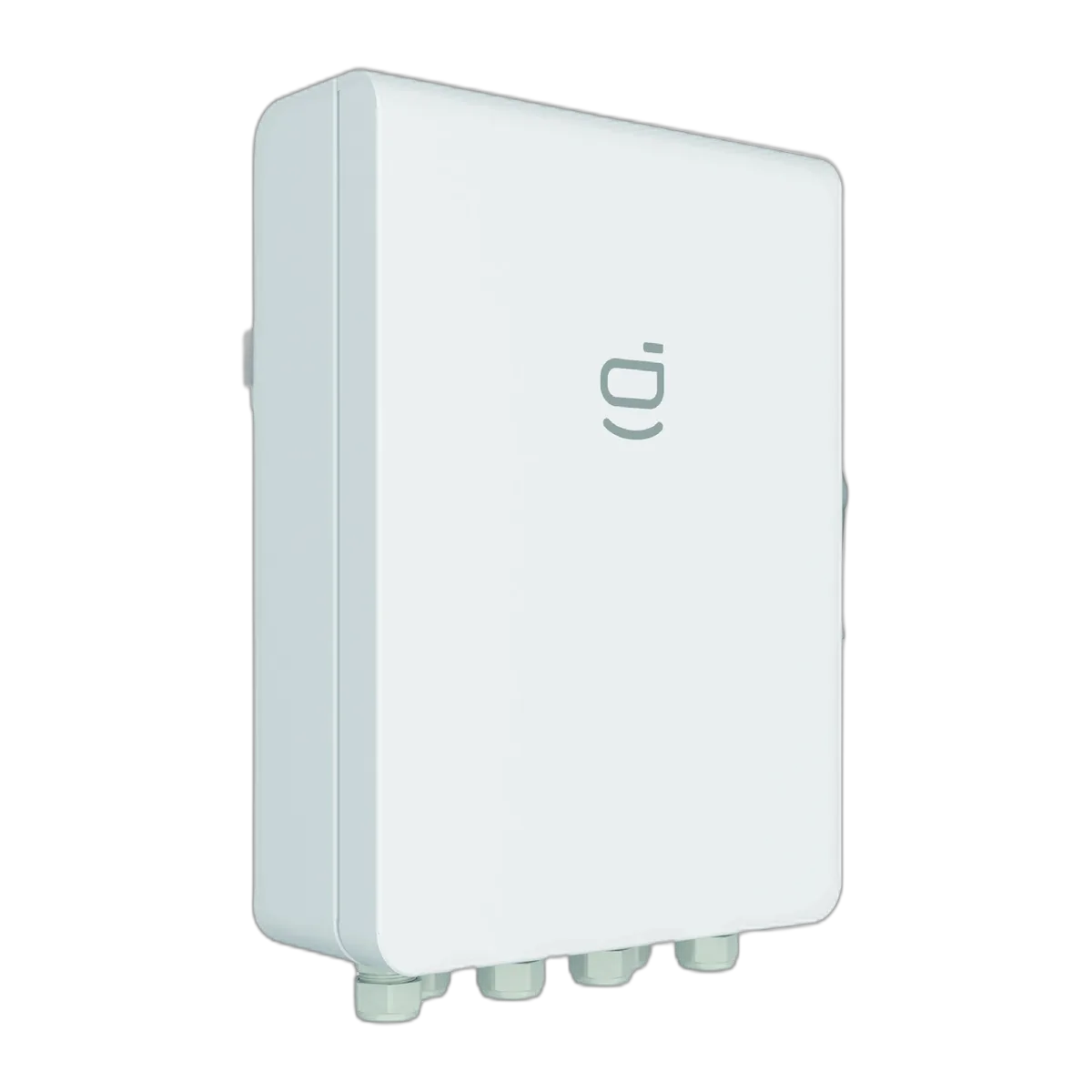

Sigen Gateway Home TP 30K - ATS Grid Box for Sigen inverters (for one inverter), without Smart port. Built-in meter is a three-phase ATS Grid Box for a single Sigen inverter with an integrated meter. It ensures seamless switching to backup power and grid protection, without a Smart port.
Sigen Gateway Home TP 30K - ATS Grid Box for Sigen inverters (for one inverter), without Smart port. Built-in meter is a three-phase ATS Grid Box (Automatic Transfer Switch) designed to work with a single Sigen inverter. The device with an integrated meter ensures smooth and reliable switching of the home installation to backup power, guaranteeing power continuity from the PV system, energy storage, or the grid. Version without a Smart port.
| Grid connection type | Three-phase |
| Nominal AC voltage | 380 / 400 V |
| Nominal AC current | 45.6 A |
| Nominal AC power | 30 kW |
| Nominal AC frequency | 50 / 60 Hz |
| Overvoltage category | III |
| Dimensions (W × H × D) | 400 × 590 × 161 mm |
| Weight | 19 kg |
| Operating temperature range | -30 ~ 55 °C |
| Cooling | Natural convection |
| Protection degree | IP54 |
| Communication | Fast Ethernet, dry contact |
| Mounting method | Wall-mounted |
Sigen Gateway Home TP 30K - ATS connection switchgear for Sigen inverters (for a single in — B2B wholesale prices for installers and contractors. Check availability and terms of cooperation: contact us.
