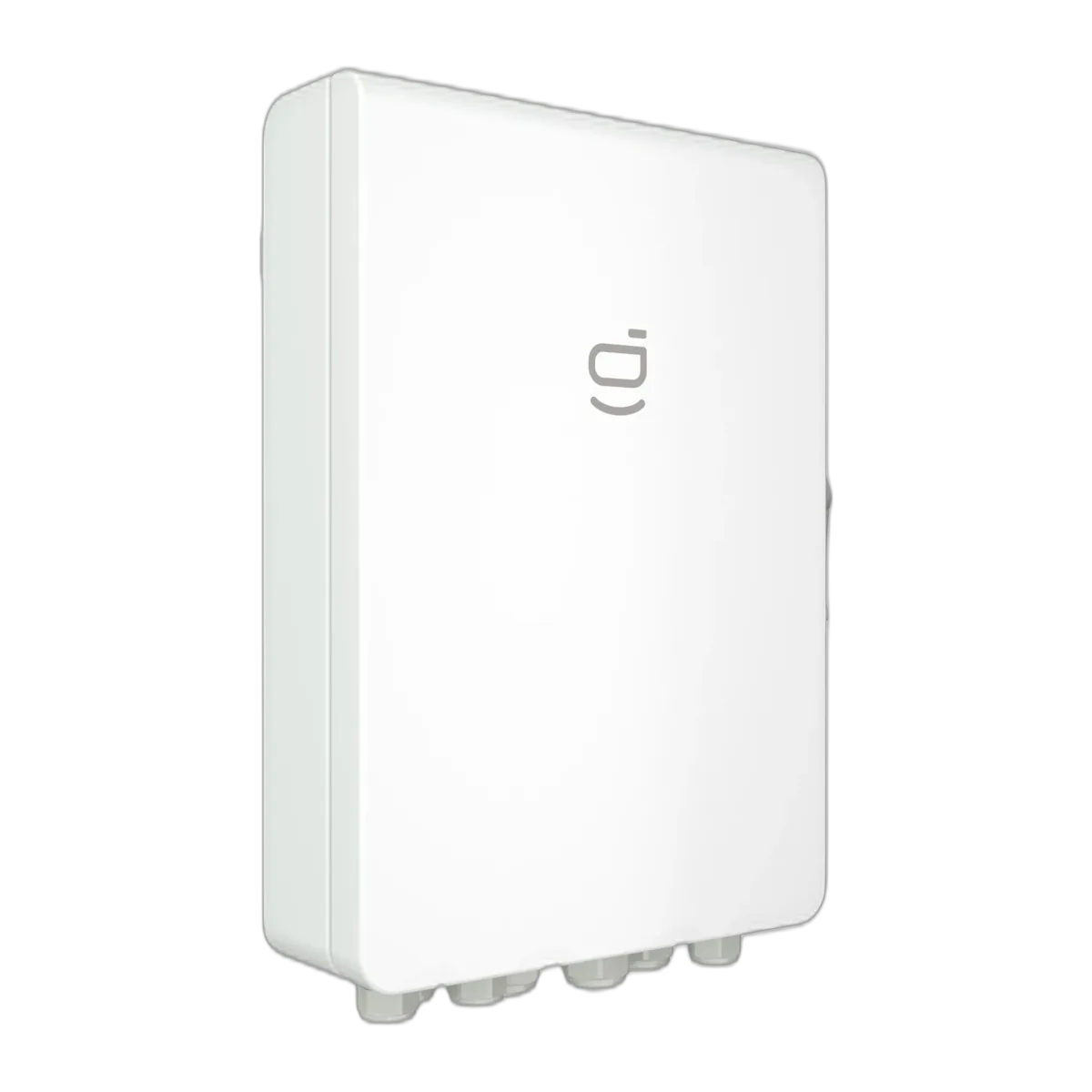

Sigen Gateway HomePRO TP ATS connection switchgear for Sigen TP inverters (single inverter). Built-in meter is a three-phase ATS connection switchgear with an integrated meter, designed for a single Sigen TP inverter. It provides uninterrupted 0 ms switching and a 100 ms zero export function.
Sigen Gateway HomePRO TP ATS connection switchgear for Sigen TP inverters (single inverter). Built-in meter is a three-phase ATS connection switchgear with an integrated meter, dedicated to working with a single Sigen TP inverter. It enables seamless, multi-source power switching (PV / ESS / grid / generator / V2X) and whole-home backup with intelligent load prioritization.
| Grid connection type | Three-phase |
| Nominal AC voltage | 380 / 400 V |
| Nominal AC current | 45.6 A |
| Nominal AC power | 30 kW |
| AC frequency | 50 / 60 Hz |
| Backup switchover time | 0 ms |
| Overvoltage category | III |
| Nominal inverter port power | 30 kW |
| Cooling | Natural convection |
| Protection rating | IP55 |
| Communication | Fast Ethernet, RS485, dry contact |
| Mounting | Wall-mounted |
| Dimensions (W×H×D) | 450 × 695 × 163 mm |
| Weight | 25 kg |
| Operating temperature range | -30~55°C |
Sigen Gateway HomePRO TP ATS connection box for Sigen TP inverters (for one inverter). Bui — B2B wholesale prices for installers and contractors. Check availability and terms of cooperation: contact us.
