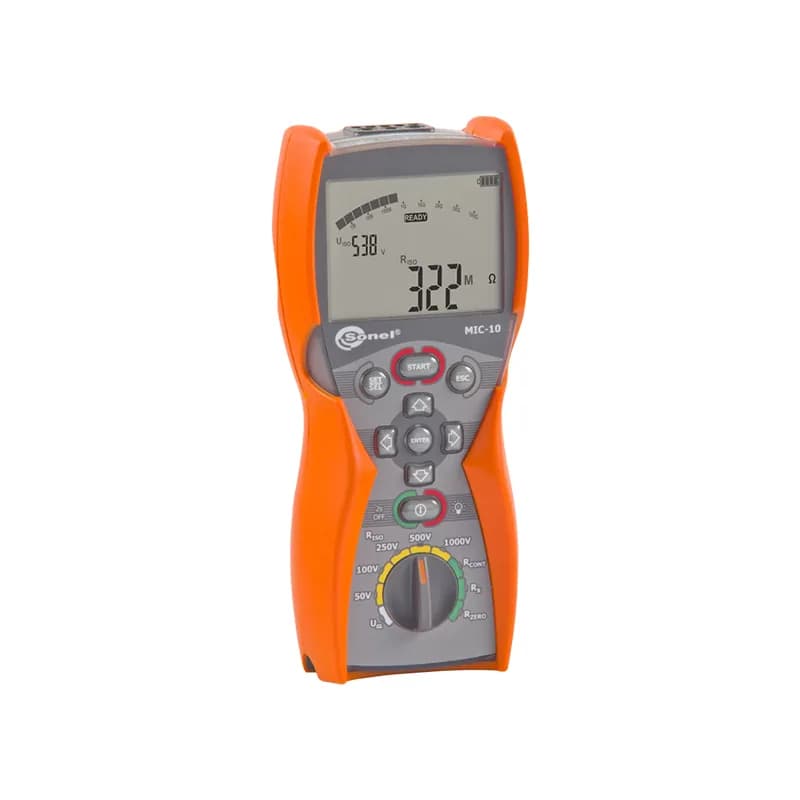

The Sonel MIC-10 insulation resistance meter operates with a maximum test voltage of 1000 V. The device generates a test current of 200 mA and features an IP67 enclosure protection rating.
The Sonel MIC-10 insulation resistance meter is a device designed for measurements in electrical installations. The maximum test voltage is 1000 V, and the measured voltage range covers 0...600 V. The design ensures an IP67 protection rating, which allows stable operation in temperatures from -10 to +50 °C. Data reading is carried out using a segment LCD display.
| Protection class | IP67 |
| Dimensions | 200 x 100 x 60 mm |
| Weight | 0.54 kg |
| Operating temperature | -10...+50 °C |
| Maximum test voltage | 1000 V |
| Measurement category | IV 600 V (III 1000 V) |
| Power supply | 4 x AA alkaline battery or 4 x AA rechargeable battery |
| Display | segment LCD |
| Test current | 200 mA |
| Voltage range | 0...600 V |
| Length | 200 mm |
| Width | 100 mm |
| Height | 60 mm |
